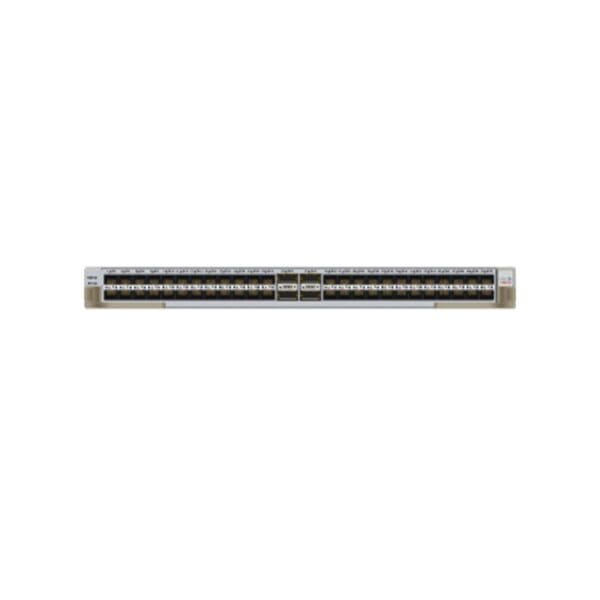

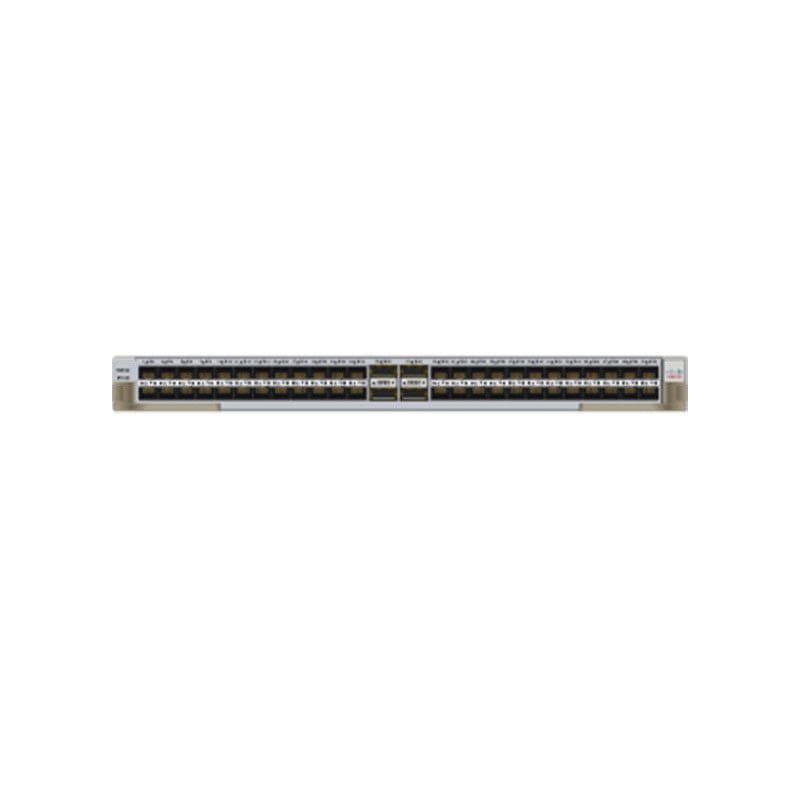

Refurbished N9K-X97160YC-EX Technical Specifications
Cisco Nexus 9000 Expansion Module
| Brand | Cisco |
|---|---|
| Product Line | Cisco Nexus |
| Model | X97160YC-EX |
| Packaged Quantity | :1 |
Performance
| Performance :Throughput | 1.6 Tbps, Throughput: 5.11 Bpps |
|---|
Capacity
| Capacity :ECMP paths | 64, HSRP groups: 490, MAC address entries: 64000, Maximum number of port channels: 512, Multicast routes: 32000, Multiple Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4096, Virtual Routing and Forwarding (VRF) instances: 1000 |
|---|
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
| Features | :40MB system buffer, Non blocking ports, Virtual Extensible LAN (VXLAN) |
Ports
| Qty | :48 |
|---|---|
| Type | :25 Gigabit SFP28 |
| Ports | (2nd) |
| Qty | :4 |
| Type | :100 Gigabit QSFP28 |
Interface Provided
| Interfaces | :4 x 40Gb Ethernet/100Gb Ethernet – QSFP+, 48 x 10Gb Ethernet/25Gb Ethernet – SFP+ |
|---|
Miscellaneous
| Color Category | Gray |
|---|---|
| Mtbf | :439,920 Hours |
Dimensions & Weight
| Weight | :12.74 lbs |
|---|
Compatibility
| Compatible With :P/N | N9K-C9504, N9K-C9504-B3-E, N9K-C9504-FM-E, N9K-C9504-FM-E=, N9K-C9508, N9K-C9508-B3-E, N9K-C9508-B3-G, N9K-C9508-FM-E, N9K-C9508-FM-E=, N9K-C9508-FM-E2, N9K-C9508-FM-E2=, N9K-C9508-FM-E-RF, N9K-C9508-FM-G, N9K-C9516, N9K-C9516-B3-E, N9K-C9516-FM-E, N9K-C9516-FM-E=, N9K-C9516-FM-E2, N9K-C9516-FM-E2= |
|---|
