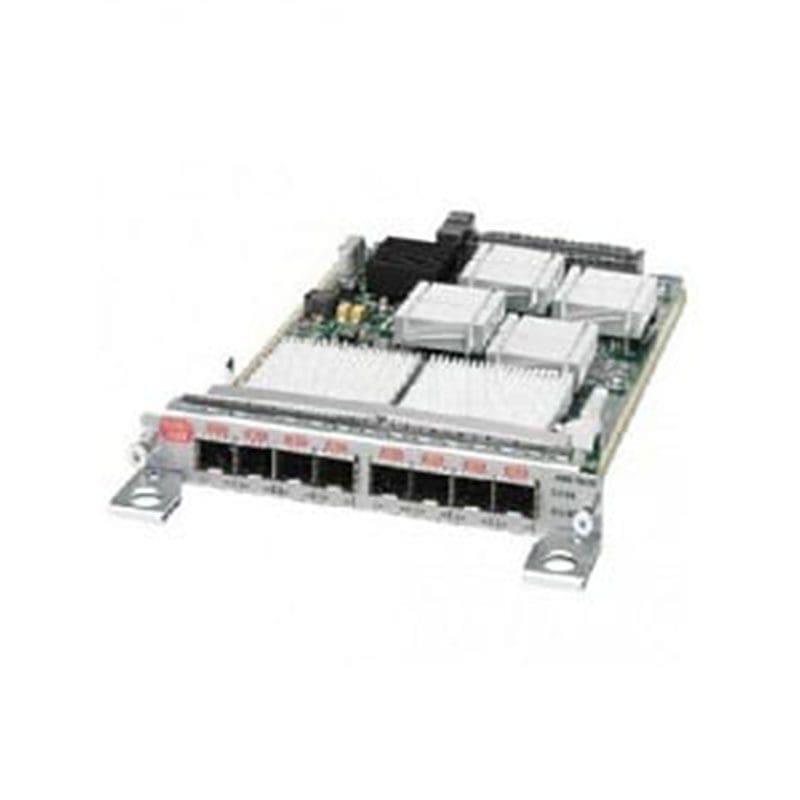

Refurbished A900-IMA8S Cisco Gigabit Ethernet expansion module
Refurbished A900-IMA8S Overview
Cisco ASR 900 series Ethernet interface modules are designed to give customers a high degree of flexibility and value. All Ethernet interface modules share a common core that supports time stamping on the module for Y.1731 operations, administration, and maintenance (OAM) delay measurement functions to achieve precise results for one-way and two-way delay measurement. The modules also provide time-stamping functions for the IEEE 1588-2008 protocol. These time stamps help ensure that the Cisco ASR 900 Series Aggregation Services Routers achieve outstanding results when deploying IEEE 1588-2008 protocols for frequency and phase synchronization. Not all customers will deploy IEEE 1588-2008 for synchronization; therefore, the Ethernet interface modules also support input and output frequency synchronization using synchronous Ethernet (SyncE).
$226.00
Refurbished A900-IMA8S Technical Specification
Cisco Gigabit Ethernet expansion module
| Manufacturer | CISCO DS HARDWARE DIRECT |
|---|---|
| Brand | Cisco |
| Product Line | Cisco ASR 900 |
| Model | :8-Port SFP Gigabit Ethernet Interface Module |
| Packaged Quantity | :1 |
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | :1 GBps |
Interface Provided
| Interfaces | :8 x network – SFP (mini-GBIC) |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
Service & Support
Compatibility
| Compatible With :P/N | A900-RSP2A-128, A900-RSP2A-128=, A900-RSP2A-128-RF, A900-RSP2A-128-WS, A900-RSP2A-64, A900-RSP2A-64=, A900-RSP2A-64-RF, A900-RSP2A-64-WS, A900-RSP3C-200-S, A900-RSP3C-200-S=, A900-RSP3C-400-S, A900-RSP3C-400-S=, A903-RSP1A-55, A903-RSP1A-55=, A903-RSP1A-55-RF, A903-RSP1A-55-WS |
|---|
