XENPAK-10GB-SR Technical Specifications

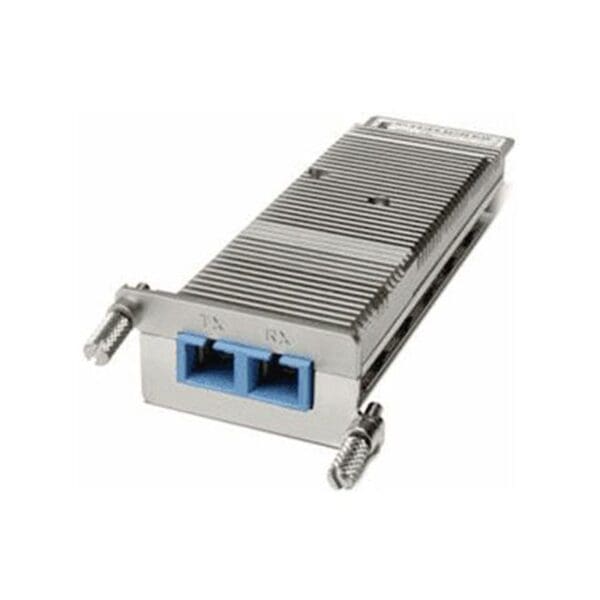

Cisco 10GBASE-SR Xenpak Transceiver Module.
General Information
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Manufacturer Part Number | XENPAK-10GB-SR |
| Brand Name | Cisco |
| Product Name | 10GBASE-SR XENPAK Transceiver Module |
| Product Type | XENPAK |
| Cisco Transceiver | |
Technical Information
| Application/Usage | Data Networking |
|---|
Interfaces/Ports
| Interfaces/Ports | 1 x 10GBase-SR |
|---|---|
| Interfaces/Ports Details | 1 x SC Duplex 10GBase-SR |
Media & Performance
| Connectivity Media | 62.5 µm Multi-mode Optical Fiber (MMF) |
|---|---|
| Connectivity Media | 50 µm Multi-mode Optical Fiber |
| Distance Supported | 85.30 ft 62.5 µm Optical Fiber 160 MHz |
| Distance Supported | 108.27 ft 62.5 µm Optical Fiber 200 MHz |
| Distance Supported | 216.54 ft 50.0 µm Optical Fiber 400 MHz |
| Distance Supported | 269.03 ft 50.0 µm Optical Fiber 500 MHz |
| Distance Supported | 984.25 ft 50.0 µm Optical Fiber 2 GHz |
| Data Transfer Rate | 10 Gbps Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
Power Description
| Power Consumption | 8 W Maximum |
|---|---|
| Environmental | Conditions |
| Temperature | 32°F (0°C) to 104°F (40°C) Operating |
| Temperature | -40°F (-40°C) to 167°F (75°C) Storage |
