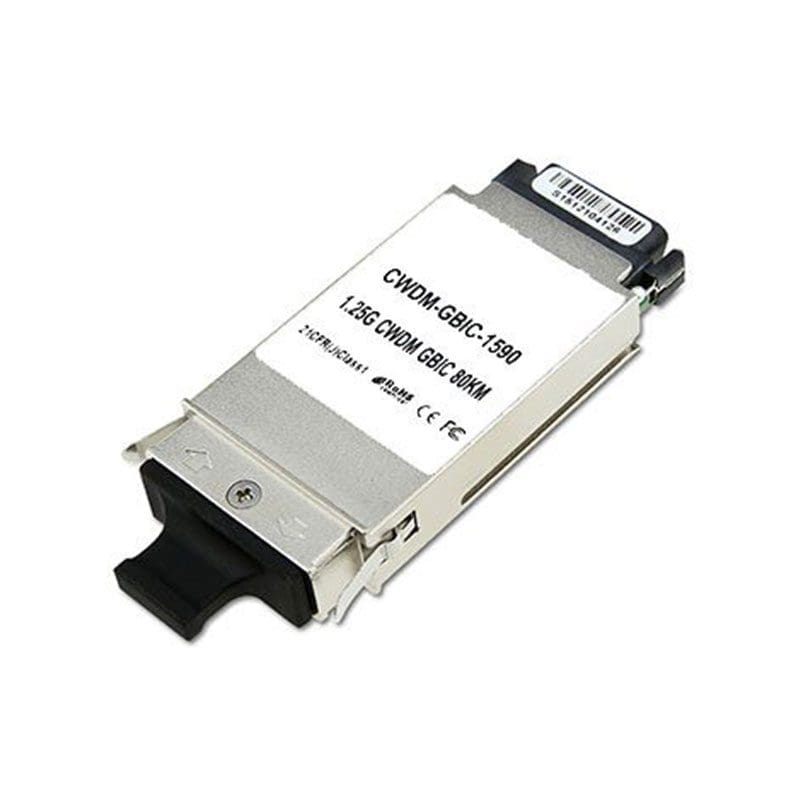

CWDM-GBIC-1590 Technical Specifications
Cisco 1Gbps 1000Base-ZX CWDM Single-mode Fiber 80km 1590nm Duplex SC Connector GBIC
General Information
| Manufacturer |
Cisco Systems, Inc |
| Brand Name |
Cisco Transceiver |
| Product Name |
1000BASE-CWDM 1590 nm GBIC |
| Product Type |
GBIC |
Technical Information
| Application/Usage |
Data Networking |
Interfaces/Ports
| Interfaces/Ports Details |
1 x SC Duplex 1000Base-X |
Media & Performance
| Media Type |
Supported Optical Fiber |
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
1000Base-X |
| Maximum Data Transfer Rate |
1.25 Gbit/s |
Miscellaneous
| Additional Information |
- Available center wavelength is 1590nm
|
| Color |
Red |
| Optical link budget of 30 decibels (dB) |
| Fiber Mode Supported |
Single-mode Fiber (SMF) |
| Transport of up to eight channels over single-mode fiber strands |
Allows for a variety of network configurations-from multichannel point-to-point to hub and meshed-ring configurations
Compatibility
Catalyst 2900 Series, Catalyst 2900XL, Catalyst 2950 series, Catalyst 3500XL series, Catalyst 3550 series, Catalyst 4500 series
