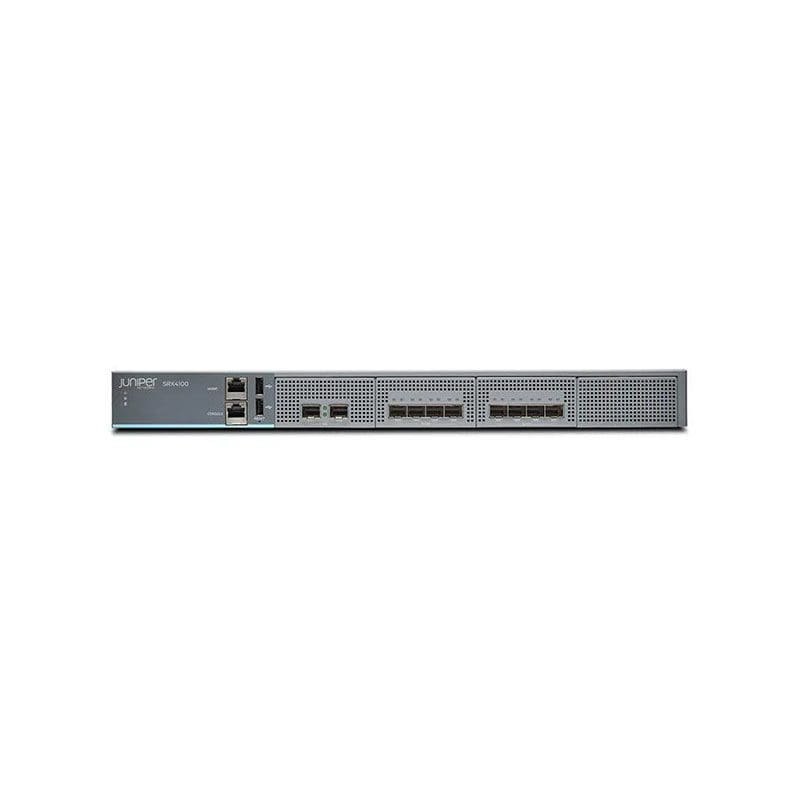

SRX4100-SYS-JB-DC Juniper Networks SRX4100 Services Gateway
SRX4100-SYS-JB-DC Overview
SRX4100-SYS-JB-DC Juniper Networks SRX4100 Services Gateway security appliance. The Juniper Networks SRX4100 Services Gateway is high-performance, next-generation firewall and hardware-accelerated security services gateway that protects mission-critical data center networks, enterprise campuses, and regional headquarters.
$28,443.00
Shipping calculated at checkout.
SRX4100-SYS-JB-DC Technical Specifications
Juniper Networks SRX4100 Services Gateway security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX4100 Services Gateway |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
RAM
| Installed Size | :64 GB |
|---|
Hard Drive
| Type | SSD |
|---|---|
| Installed Qty | :2 |
| Capacity | :240 GB |
Performance
| Performance :Firewall throughput | 7 Gbps, Connection rate: 175000 connections per second, IPSes throughput (1400-byte packet size): 10 Gbps, Application control (AVC) throughput: 18 Gbps, Firewall throughput (IMIX): 20 Gbps, IPS throughput: 10 Gbps, Firewall throughput (64-byte packet size): 5 Gbps, Firewall throughput (1518-byte packet size): 40 Gbps, VPN throughput (IPSec): 5 Gbps |
|---|
Capacity
| Capacity :Concurrent sessions | 5000000, Routing table entries: 2000000, Forwarding table entries: 2000000, Security policies: 60000 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Ports Qty | :8 |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet |
| Routing Protocol | OSPF, Static IPv4 routing, IGMP, IS-IS, BGP, Static IPv6 routing, IGMPv2, OSPFv3, Bidirectional PIM, RIP-1, RIP-2 |
| Network / Transport Protocol | DHCP, PPPoE, IPSec |
| Remote Management Protocol | Telnet, SNMP, SSH |
| Data Transfer Rate | :10 GBps |
| Features | Source-Specific Multicast (SSM), NAT support, IPSec NAT-Traversal (NAT-T), Generic Routing Encapsulation (GRE), VLAN support, Weighted Random Early Detection (WRED), DHCP relay, High Availability, DiffServ Code Point (DSCP) support, DHCP client, DHCP server, Firewall protection, MPLS support, IPSec Virtual Private Network (VPN), Quality of Service (QoS), Antivirus analysis, IGMP filtering, Multicast Source Discovery Protocol (MSDP), IPv6 support, J-Flow, Virtual Private LAN Service (VPLS), Intrusion Prevention System (IPS), Label Distribution Protocol (LDP), DDos attack prevention, Equal-Cost Multipath (ECMP), DNS proxy, Dynamic DNS server, Dead Peer Detection (DPD), Virtual Route Redundancy Protocol (VRRP) support, Anti-spam protection, VPN support |
| Compliant Standards | IEEE 802.1p, X.509 |
Interface Provided
| Interfaces | :1 x 1000Base-T (management) – RJ-45, 2 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 2 x USB 2.0 – Type A, 8 x 10Gb Ethernet – SFP+ |
|---|---|
| OS | Provided |
| Type | JUNOS |
Software
| Type | Junos Software Base |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Power Provided | :650 watt |
| Nominal Voltage | DC -48 V |
| Power Consumption Operational | :200 watt |
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | :1 |
| Encryption Algorithm | PKI, IKEv2, 128-bit SHA, 256-bit SHA, IKE, SHA-1, Triple DES, 256-bit AES |
| Mtbf | :12 years |
| Compliant Standards | RoHS2, FCC Class A certified |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :25 inch |
| Height | :1.7 inch |
| Weight | :28.99 lbs |
Dimensions & Weight (Shipping)
| Shipping Weight | :47.49 lbs |
|---|
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
