FG-100D-BDL Technical Specifications

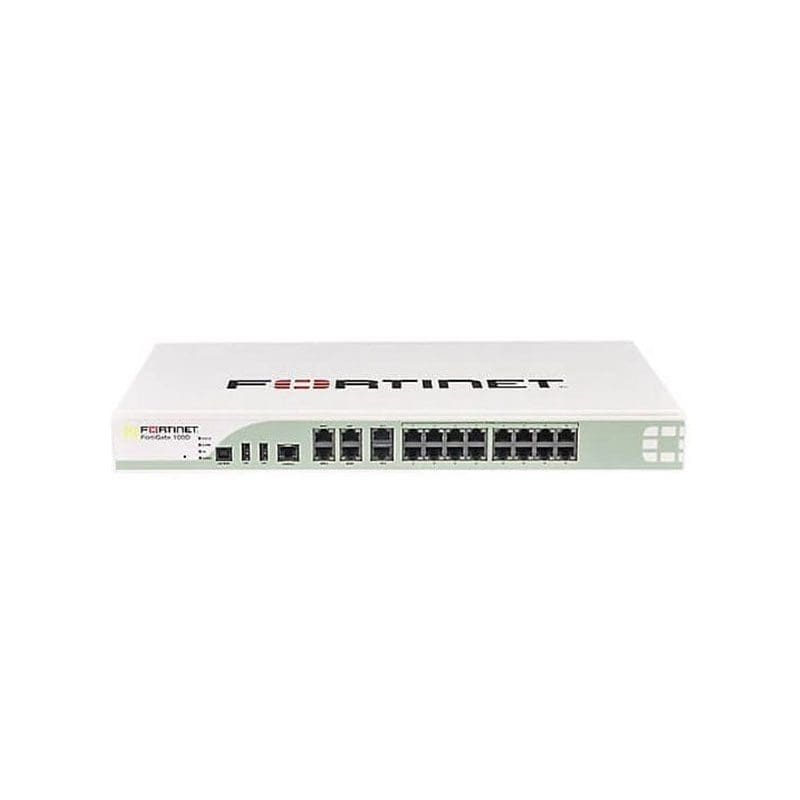

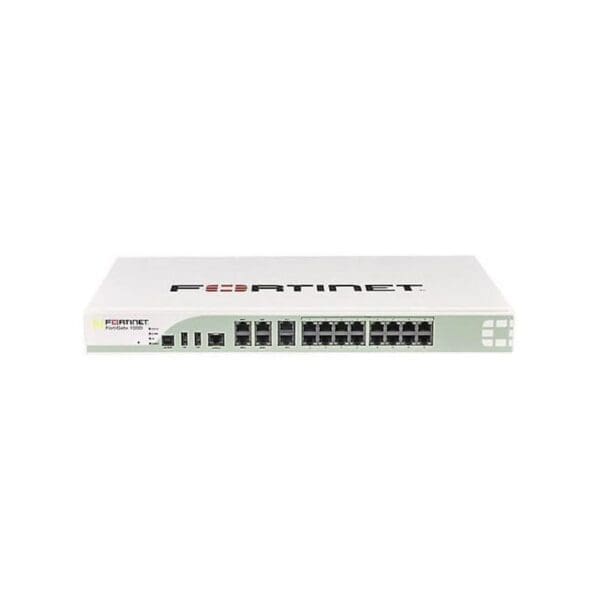

Fortinet FortiGate-100D Firewall Appliance – 22 Port – Gigabit Ethernet – Rack-mountable, Desktop
| Hardware |
Specifications |
| GbE RJ45 Ports 20 |
| GbE RJ45 PoE Ports |
- GbE SFP or RJ45 Shared Ports 2
|
GbE SFP Ports
| USB Ports |
(Client / Server) 1/2 |
T1 Port
| Console Port |
1 |
| Internal |
Storage 32 GB |
| System Performance |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 2,500 / 1,000 / 200 Mbps
- Firewall Latency (64 byte UDP packets) 37 μs
- Firewall Throughput (Packets Per Second) 300 Kpps
- Concurrent Sessions (TCP) 3 Million
- New Sessions/Sec (TCP) 22,000
- Firewall Policies 10,000
- IPSec VPN Throughput (512 byte packets) 450 Mbps
- Gateway-to-Gateway IPSec VPN Tunnels 2,000
- Client-to-Gateway IPSec VPN Tunnels 5,000
- SSL-VPN Throughput 300 Mbps
- Concurrent SSL-VPN Users (Recommended Max) 300
- IPS Throughput 950 Mbps
- Antivirus Throughput (Proxy Based / Flow Based) 300 / 650 Mbps
- Virtual Domains (Default / Max) 10 / 10
| Max |
Number of FortiAPs (Total / Tunnel Mode) 64 / 32 |
| Max |
Number of FortiTokens 1,000 |
| Max |
Number of Registered FortiClients 2,000 |
| High Availability Configurations Active / Active, Active / Passive, Clustering |
Dimensions
| Height |
x Width x Length (in) 1.75 x 17.01 x 11.73 in |
| Height |
x Width x Length (mm) 44 x 432 x 298 mm |
| Form Factor |
Rack Mount, 1 RU |
| Weight |
9.5 lbs (4.3 kg) |
Environmental
| Power |
Required 100 – 240 VAC, 50 – 60 Hz |
| Max |
Current 110 V / 3 A, 220 V / 1.5 A |
Total Available PoE Power Budget
| Power Consumption |
(AVG / Max) 52.6 W / 63.1 W |
Heat Dissipation 215.3 BTU/h
| Operating Temperature |
32 – 104 °F (0 – 40 °C) |
| Storage Temperature -31 – 158 °F (-35 – 70 °C) |
| Humidity |
20 to 90% non-condensing |
Compliance & Certifications
| Compliance |
FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI |
| Certifications ICSA Labs |
Firewall, SSL VPN, IPS, Antivirus |
