SRX380-P-SYS-JB-AC Technical Specifications

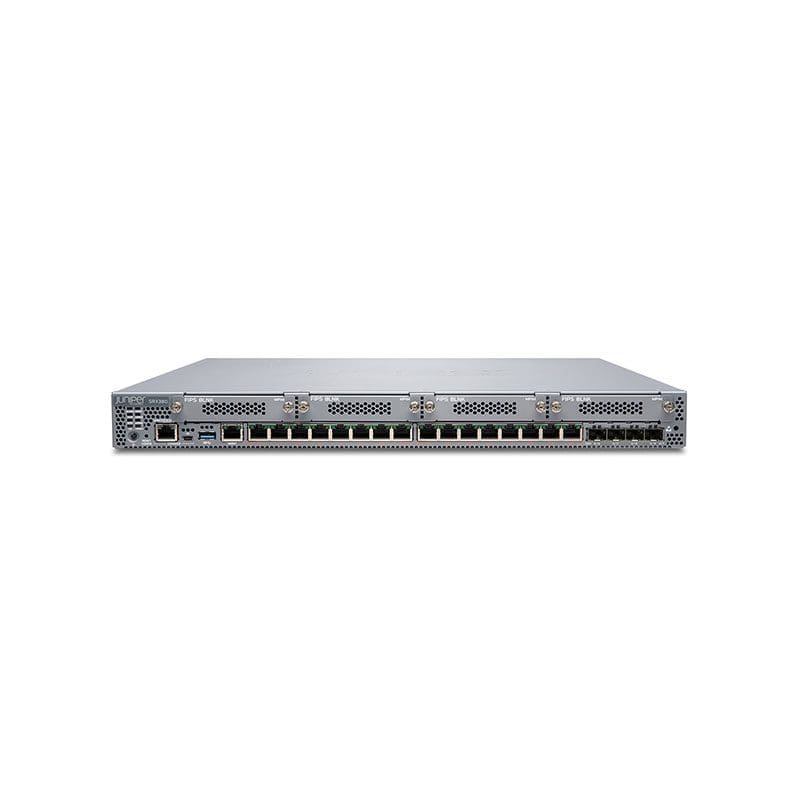

Juniper Networks SRX380 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | SRX380 |
| Packaged Quantity | 1 |
| Airflow Direction | Front to back airflow |
| Installed Size | 4 GB |
| Type | SSD |
| Capacity | 100 GB |
| Form Factor | Rack-mountable |
| Ports Qty | 20 |
| Connectivity Technology | Wired |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Interfaces | 1 x USB 2.0 – Type A, 4 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 1 x console – RJ-45, 1 x management – RJ-45, 16 x 1000Base-T – RJ-45 |
| Software Type | Junos Software Base |
| Power Device Type | Internal power supply |
| Hot-Plug | Hot-plug |
| Nominal Voltage | AC 120/230 V |
| Compliant Standards | FCC Class A certified, RoHS2 |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
