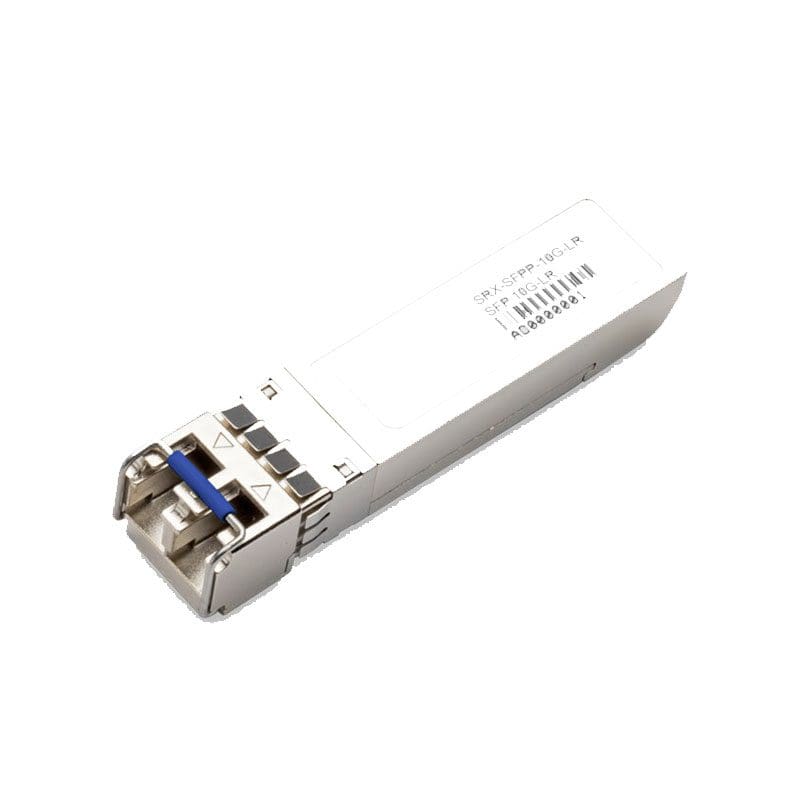

SRX-SFPP-10G-LR Juniper Networks 10GE SFP+ Optical Transceiver
SRX-SFPP-10G-LR Overview
The Juniper Networks SFP+ Transceiver Module is tested to offer superior networking performance. It is designed for use with Juniper Networks SRX3400 Services Gateway Base and SRX3600.
$415.00
Shipping calculated at checkout.
SRX-SFPP-10G-LR Technical Specifications
Juniper Networks 10GE SFP+ Optical Transceiver
| Manufacturer | Juniper Networks, Inc |
|---|---|
| Manufacturer Part Number | SRX-SFPP-10G-LR |
| Brand Name | Juniper |
| Product Type | SFP+ |
Technical Information
| Application/Usage | Data Networking, Optical Network |
|---|
Interfaces/Ports
| Interfaces/Ports Details | 1 x 10GBase-LR Network |
|---|
Media & Performance
| Media Type | Supported Optical Fiber |
|---|---|
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Data Transfer Rate | 10 |
Miscellaneous
| Compatibility | Juniper Networks SRX-MIC-10XG-SFPP Module |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
Standard: 10GBASE-LR
| Signaling rate, each lane | 10 Gbps |
|---|---|
| Transmitter fibers | Dual |
| Transmitter wavelengths (range) | 1310 nm |
| Transmitter output power, each lane (minimum) | –8.2 dBm |
| Transmitter output power, each lane (maximum) | 0.5 dBm |
| Cable type | SMF |
