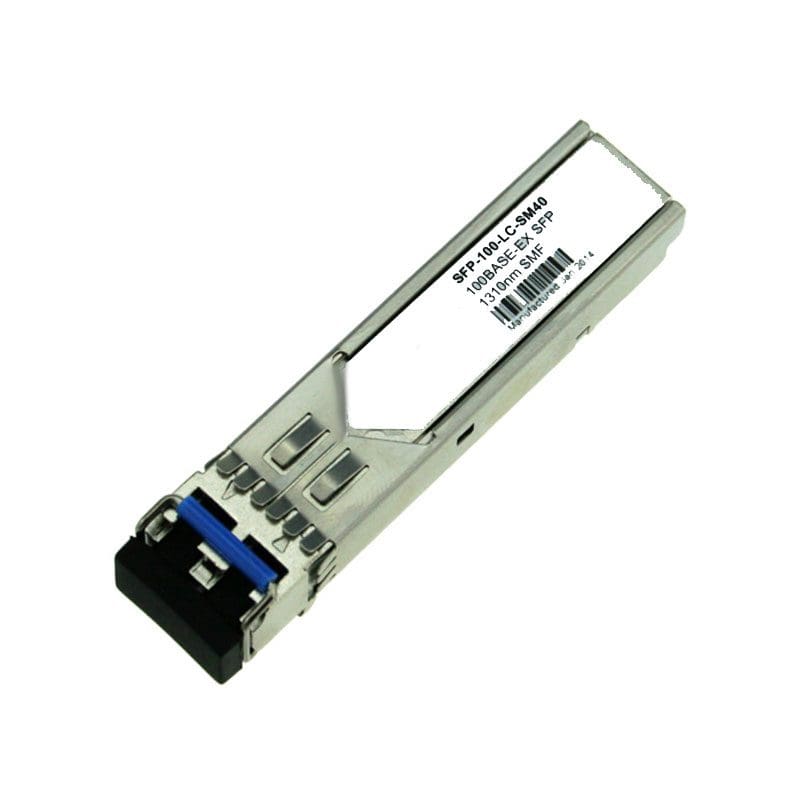

SFP-100-LC-SM40 Alcatel-Lucent Compatible Single mode
SFP-100-LC-SM40 Overview
The 100BASE-EX SFP transceiver is tested to be compatible with Alcatel-Lucent networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Ethernet Media Converters. The OSP155-3140DCR-ALU is an ideal equivalent to Alcatel-Lucent SFP-100-LC-SM40 100BASE-EX SFP module with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.
$341.00
Shipping calculated at checkout.
SFP-100-LC-SM40 Technical Specifications
Alcatel-Lucent Compatible Single mode
| Media Type | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength | 1310 nm. |
| RX Wavelength | 1310 nm. |
| Minimum Optical Budget | 25 dB |
| Maximum Distance | 40km |
| Supported Data Rate | 100-155Mbps |
| Supported Applications | 100M Ethernet (100Mbps), STM-1 (155Mbps) |
| Ddm/Dom | Support |
| Temperature Range | Standard 0°-70°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power | -9 dB |
| Maximum Transmitting Power | 3 dB |
| Receiver Sensitivity | -34 dBm |
| Receiver Overload | -3 dBm |
| Dispersion | 300-400 ps/nm |
| Transmitter Type | FP Laser |
| Receiver Type | PIN photodiode1 |
| Power | +3.3V single power supply |
| Chipset | MAXIM, MINDSPEED, SEMTECH |
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
| Transceiver Type | SFP |
