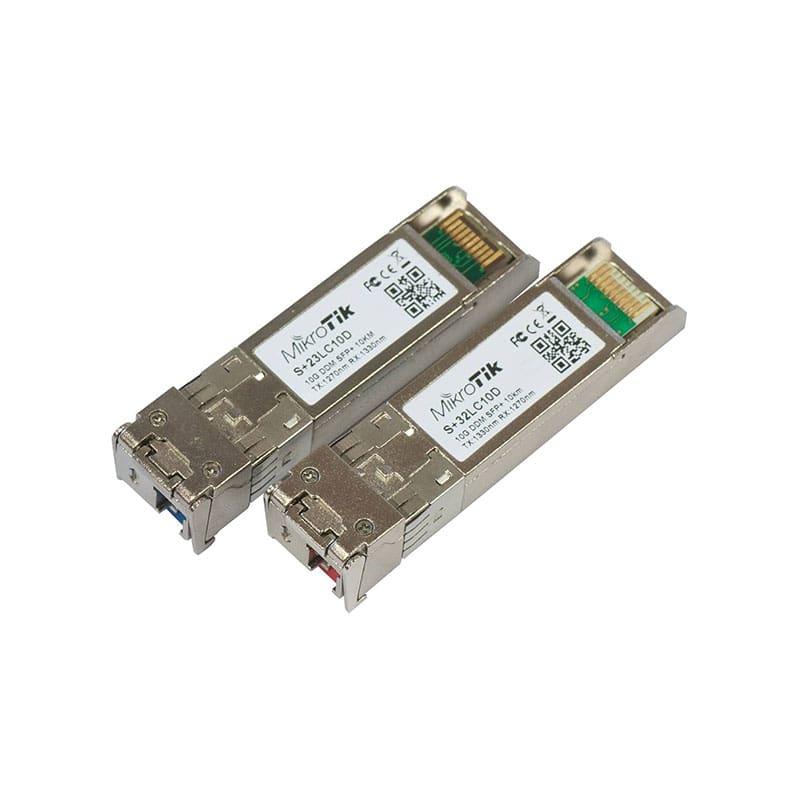

S+2332LC10D Mikrotik SFP+ Simplex LC/UPC SMF Optical Transceiver Module
S+2332LC10D Overview
Mikrotik S+2332LC10D compatible SFP+ transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1330-nm channel and receives a 1270-nm signal, whereas the other BiDi SFP+ optics transmits at a 1270-nm wavelength and receives a 1330-nm signal.
$447.00
Shipping calculated at checkout.
S+2332LC10D Technical Specifications
Mikrotik SFP+ 10GBASE-BX10-U BiDi 1270nm-TX/1330nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module
| Manufacturer | MikroTik |
|---|---|
| Vendor Name | FS |
| Form Factor | SFP+ |
| Max Data Rate | 11.3168Gbps |
| Wavelength | 1270nm-TX/1330nm-RX |
| Max Cable Distance | 10km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | < -14.4dBm Powerbudget: 6.2dB Receiver Overload: 0.5dBm Typical Power Consumption: ≤1W Extinction Ratio: >3.5dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
