AIR-AP2802I-I-K9 Technical Specifications

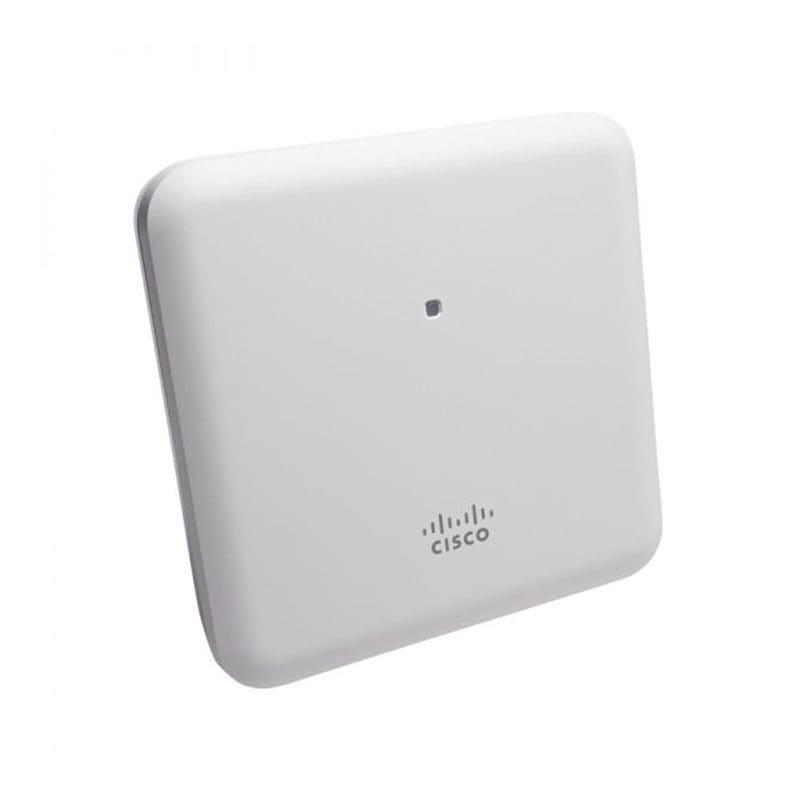

Cisco Aironet 2802i Access Point
Frequency band and 20-MHz operating channels
| I (I regulatory domain) | 2.412 to 2.472 GHz; 13 channels, 5.180 to 5.320 GHz; 8 channels |
|---|---|
| Antenna | Internal Antenna |
Features
| 4×4 MU-MIMO with three spatial streams | MRC |
|---|---|
| 802.11ac Beamforming | 20-, 40-, 80, 160-MHz channels |
| PHY data rates up to 5.2 Gbps | |
| Packet aggregation | A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
Interfaces
| 2 x 100/1000BASE-T autosensing (RJ-45) | |
| Management | console port (RJ-45) |
|---|---|
| USB | 2.0 (enabled via future software) |
System memory
- 1024 MB DRAM
- 256 MB flash
Dimensions (W x L x H)
8.66 x 8.68 x 2.17 in.
| Net Weight | 3.53 lb (1.6 kg) |
|---|
