QDD-400G-DR4 Technical Specifications

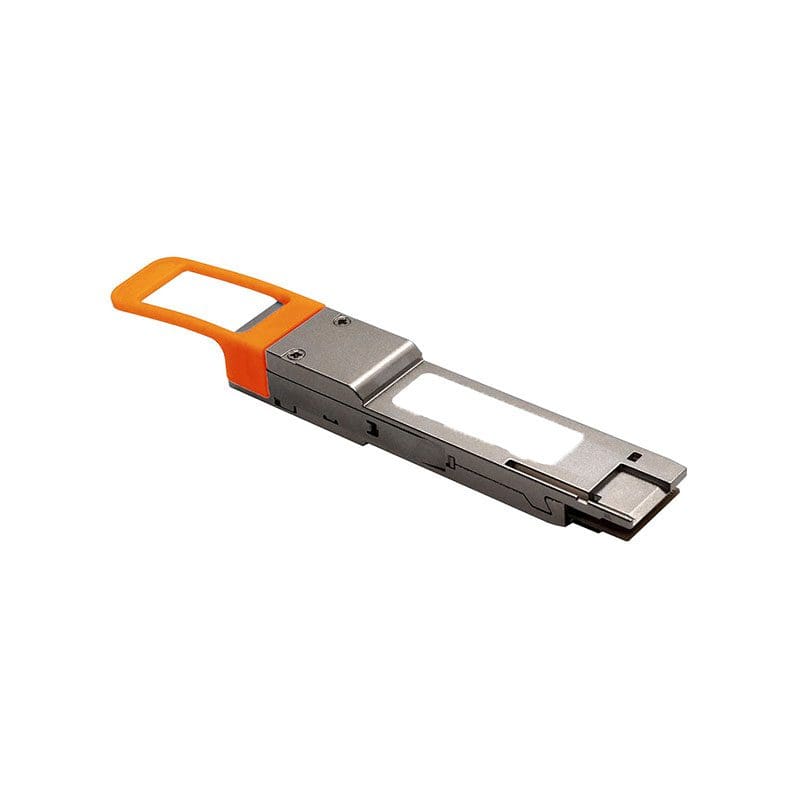

Juniper QSFP56-DD 400G DR4 Transceiver
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Packaged Quantity | :1 |
Line Properties
| Line Coding Format | PAM4 |
|---|
Networking
| Type | QSFP-DD Transceiver Module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 400GBase-DR4, 4x Ethernet 100GBase-DR |
| Data Link Protocol | :400 Gigabit Ethernet |
| Data Transfer Rate | :400 GBps |
| Optical Wave Length | :1310 nm |
| Max Transfer Distance | :1640 ft |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Connectors | (for SD) |
| Left Connector Type | MPO-12 single-mode |
Interface Provided
| Interfaces | :1 x Ethernet 400GBase-DR4 – MPO-12 single-mode |
|---|
Power Device
| Power Consumption Operational | :12 watt |
|---|
Miscellaneous
| Compliant Standards | MSA |
|---|
Dimensions & Weight
| Width | :0.7 inch |
|---|---|
| Depth | :3.7 inch |
| Height | :0.5 inch |
Compatibility
| Compatible With | Juniper Networks QFX Series QFX5220-32CD |
|---|
