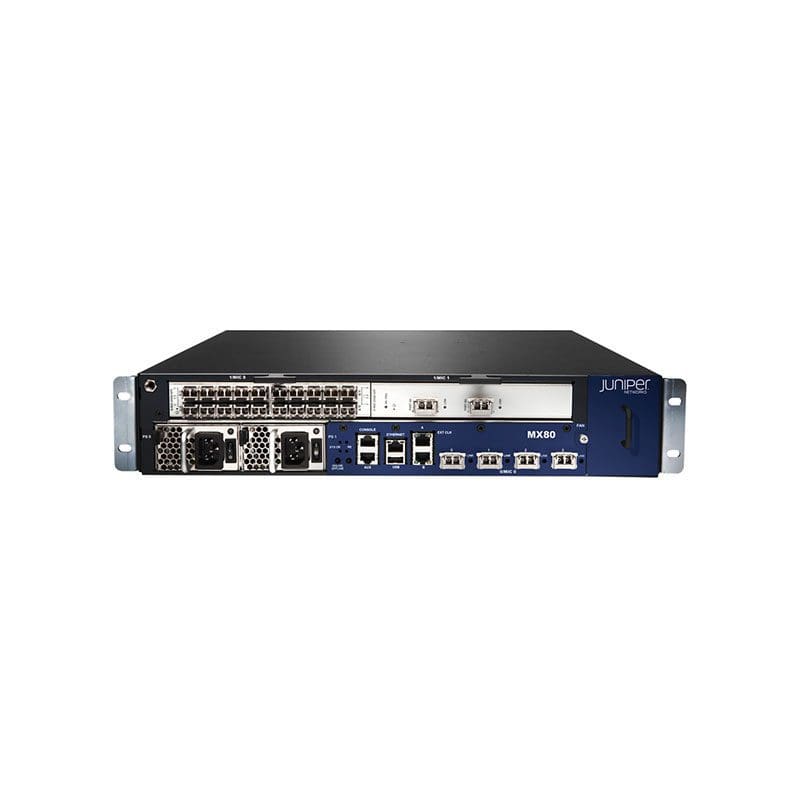

Refurbished MX80-AC-B Juniper Networks MX-series MX80 router
Refurbished MX80-AC-B Overview
The MX80 3D Universal Edge router integrates carrier Ethernet capabilities and a Modular Port Concentrator (MPC) design to create a cost-effective Ethernet service solution ideal for environments with severely limited space.
$6,800.00
Shipping calculated at checkout.
Refurbished MX80-AC-B Technical Specifications
Juniper Networks MX-series MX80 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX80 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :2
Modem
| Type | None |
|---|
Performance
| Performance :Switching capacity | 80 Gbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet |
| Routing Protocol | BGP, GRE |
| Remote Management Protocol | SNMP 3, HTTP, SNMP 2 |
| Key Features | USB port, VPN support |
| Features | VPN support, MPLS support, Quality of Service (QoS), Manageable |
Expansion Slots
| Expansion Slots | :2 (total) / 0 (free) x Modular Interface Card (MIC) |
|---|
Interface Provided
| Interfaces | :1 x auxiliary – RJ-45, 4 x XFP, Management: 1 x 10Base-T/100Base-TX – RJ-45, USB: 1 x, Management: 1 x console – RJ-45 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | :376 watt |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Compliant Standards | EN 61000-4-6, VCCI Class A ITE, EN 61000-4-3, EMC, EN 61000-4-5, NEBS, ETSI, EN 61000-4-11, CSA C22.2 No. 60950-00, EN 60950, EN 61000-4-2, FCC Part 15 A, EN 61000-3-2, EN 60825-1, EN55022 Class A, AS/NZS 3548 Class A, EN 61000-4-4, UL 1950 Third Edition, EN 61000-3-3, RoHS |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.5 inch |
| Height | :3.5 inch |
| Weight | :30.2 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
