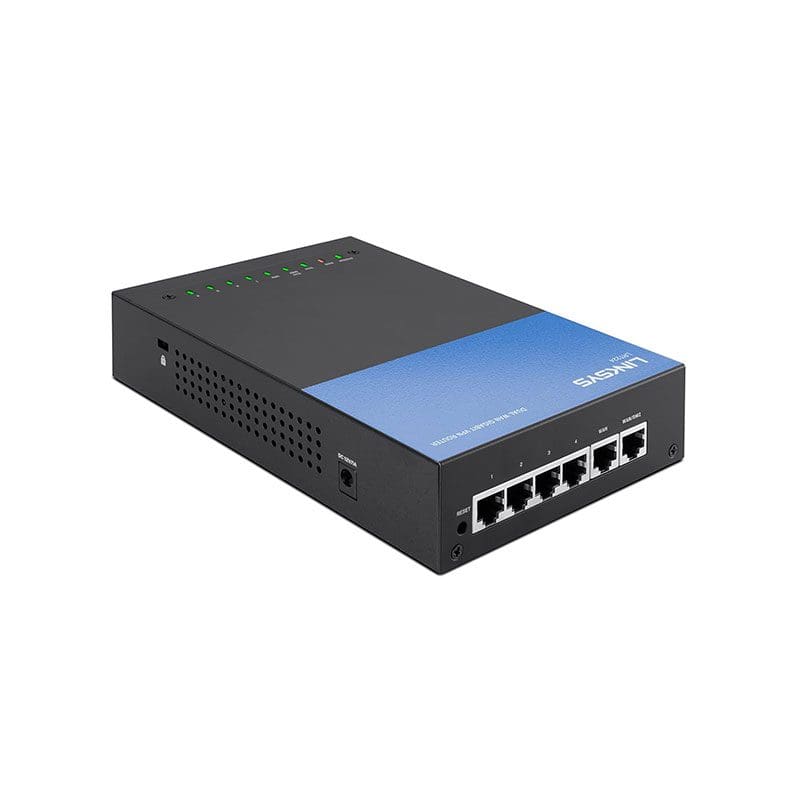

Refurbished LRT224 Technical Specifications
Linksys Dual WAN Business Gigabit VPN Router
- Dual WAN Link failover, load balancing
- Protocol & IP binding to a WAN port
- Firewall SPI (Stateful Packet Inspection)
- DoS (Denial of Service) prevention
- Schedule-based access rules (50)
- Web filtering (URL and keyword blocking)
- Block Java, cookies, ActiveX, http proxy servers
- IGMP proxy
- UPnP
- Site-to-Site VPN 50 IPsec site-to-site tunnels
- Split DNS over site-to-site tunnel
- VPN backup for site-to-site tunnel
- DPD (Dead Peer Detection)
- Keep alive
- NAT-traversal
- Remote Access VPN OpenVPN, PPTP, client-to-site IPsec
- OpenVPN Mobile Client Support (iOS, Android)
- NAT Gateway mode, router mode
NAPT 1-to-1 NAT (10)
| Port |
forwarding (30) |
| Port |
triggering (30) |
| Port |
address translation (30) |
- DMZ host
- DMZ Port DMZ range, DMZ subnet
IEEE 802.1Q VLAN Tagging 5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
| Vlan |
trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches |
- DHCP Server Multiple address pools (one per VLAN subnet)
- MAC&IP binding
- MAC filtering
- DHCP relay
- DNS Server DNS proxy, DNS local database
| Bandwidth |
Management Rate control allowing limiting upstream and downstream bandwidth per service and IP |
- Priority scheme allowing services mapped to 3 levels of priority
- Alerts SNMP, Syslog, E-mail
WAN Connection Type Dynamic IP, PPPoE, PPTP, Static IP, Transparent Bridge, MAC address clone
DDNS DynDNS, 3322
| Routing |
Static and dynamic routing (RIP and RIPng) |
- IPv6 DHCPv6-PD, 6to4, router advertisement
- Maintenance Configuration, backup, and restore
Dual configurations (startup and mirror)
| Firmware |
upgrade |
| Diagnostics |
(ping and DNS name lookup) |
- Reboot
- Factory defaults
- Status & Statistics WAN connection status
VPN tunnel/user status
| Port |
status and statistics |
| LEDs |
System, DIAG, WAN, WAN/DMZ. VPN, LAN 1-4 |
| Port |
Management 10/100/1000 Mbps, Auto Negotiation, Half/Full Duplex |
| Ethernet Technology |
Gigabit Ethernet |
| Administration Internet Explorer, Firefox, Safari |
Setup wizard
| Remote management |
over HTTPS |
| Performance IPsec VPN throughput (Mbps) |
110 |
| Maximum NAT throughput (Mbps) |
900 |
| Maximum concurrent connections |
30,000 |
| Ports |
1 x 10/100/1000 RJ45 WAN port |
- 1 x 10/100/1000 RJ45 WAN/DMZ port
- 1 x 10/100/1000 RJ45 DMZ port
- 4 x 10/100/1000 RJ45 LAN ports
- OpenVPN for mobile platforms (iOS, Android)
- Reset button
Kensington lock
| Power |
12 V, 1 A |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Non-Operating Temperature |
32 to 158°F / 0 to 70°C |
| Operating Humidity |
10 to 85% non-condensing |
| Non-Operating |
Humidity 5 to 90% non-condensing |
| Regulatory Certifications FCC Class B, CE Class B |
| Dimensions |
7.5 x 5.1 x 1.6″ / 191 x 130 x 40 mm |
| Weight |
1.592 lb / 0.722 kg |
