MR84-HW Technical Specifications

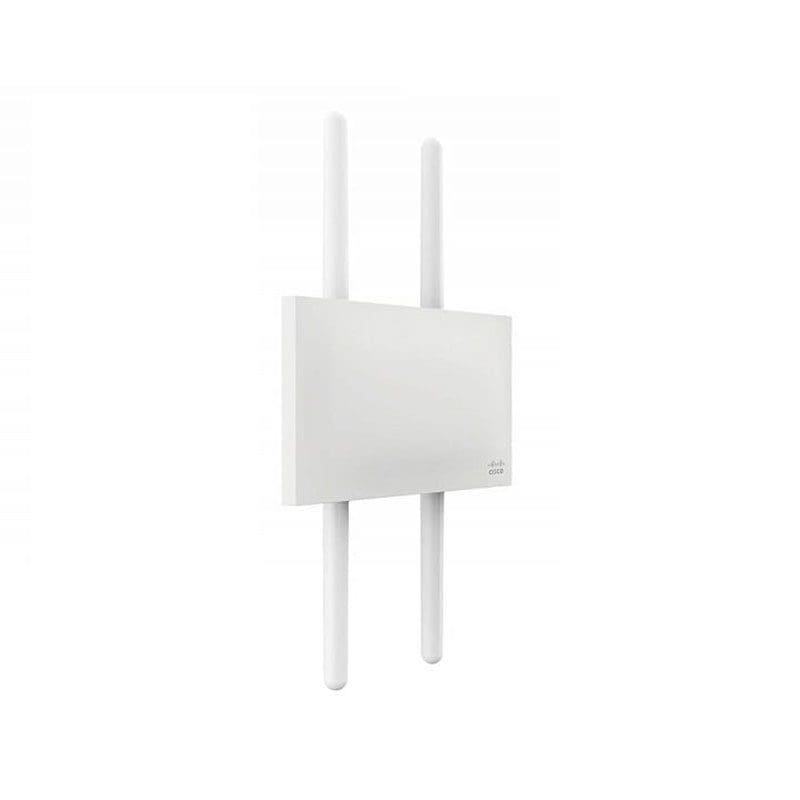

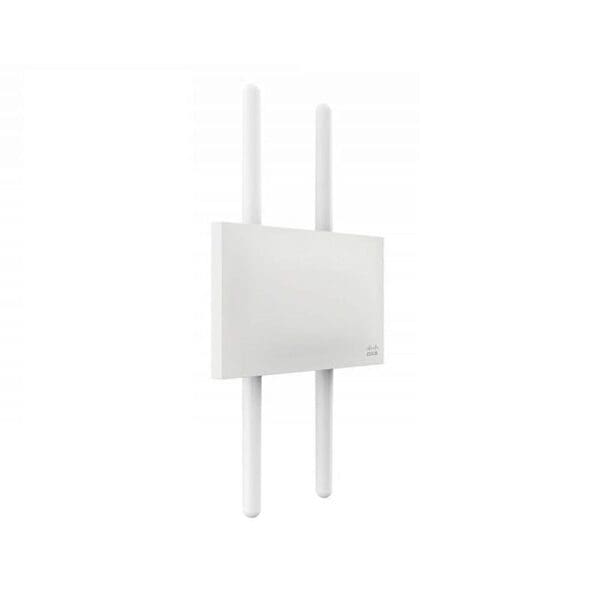

Cisco Meraki MR84 Cloud Managed – Wireless Access Point
Chassis
| Ruggedized Design | Outdoor |
|---|
Dimensions & Weight
| Depth | :6.9 in |
|---|---|
| Height | :7.3 in |
| Weight | :3.75 lbs |
| Width | :11.3 in |
Environmental Parameters
| Max Operating Temperature | :131 °F |
|---|---|
| Min Operating Temperature | -40 °F |
| Brand | Cisco Meraki |
|---|---|
| Compatibility | PC |
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Model | MR84 Cloud Managed |
| Packaged Quantity | :1 |
| Product Line | Cisco Meraki |
Interface Provided
| Connector Type | N connector |
|---|---|
| Qty | :4 |
| Type | Antenna |
| Connector Type | RJ-45 |
| Qty | :1 |
| Type | :1000Base-T (PoE+) |
| Ethernet Technology | Gigabit Ethernet |
| Wan Dmz | WAN |
| Type | :2.5 GBase-T (PoE+) |
Line Properties
| Line Coding Format | :256 QAM |
|---|
Networking
| Connectivity Technology | Wireless |
|---|---|
| Data Transfer Rate | :2.5 Gbps |
| Form Factor | External |
| Network Transport Protocol | IPSec |
| Power Over Ethernet (PoE) | PoE+ |
| Type | Wireless access point |
| Wi-Fi Bands :2.4 GHz, 5 GHz | |
