AIR-AP2802I-T-K9 Technical Specifications

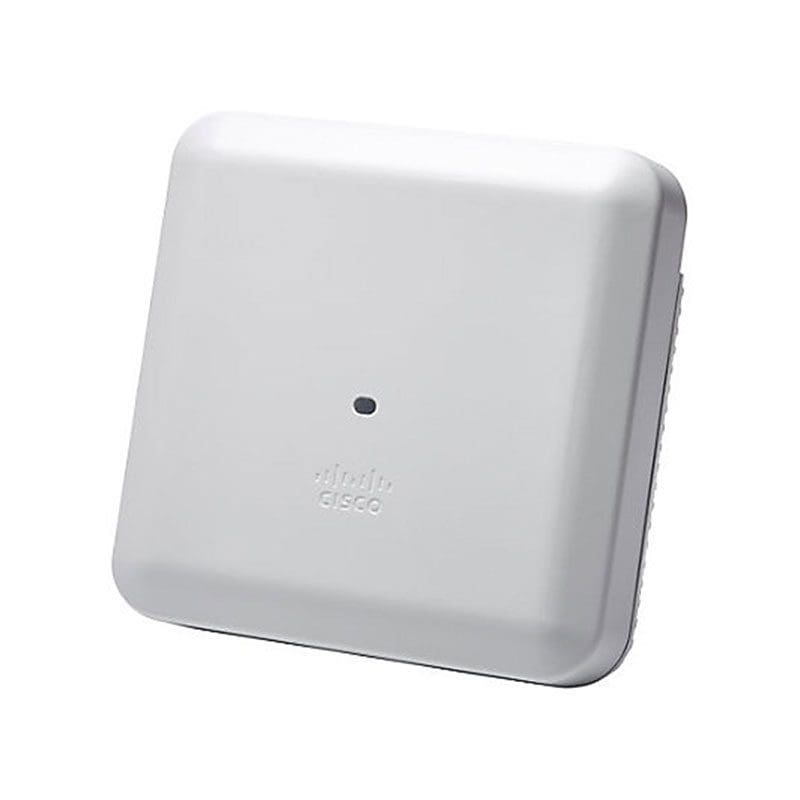

Cisco Aironet 2802i Access Point
General Information
| Manufacturer | Cisco |
|---|
Frequency band and 20-MHz operating channels
T (T regulatory domain)
- 2.412 to 2.462 GHz; 11 channels
- 5.280 to 5.320 GHz; 3 channels
- 5.500 to 5.700 GHz; 8 channels
- (excludes 5.600 to 5.640 GHz)
- 5.745 to 5.825 GHz; 5 channels
Antenna: Internal Antenna
Features
- 4×4 MU-MIMO with three spatial streams
- MRC
- 802.11ac Beamforming
- 20-, 40-, 80, 160-MHz channels
- PHY data rates up to 5.2 Gbps
| Packet aggregation | A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
|---|
- 802.11 DFS
- CSD support
| Interfaces |
|
|---|---|
| Management | console port (RJ-45) |
| USB | 2.0 (enabled via future software) |
| System memory |
|
| Dimensions (W x L x H) |
|
| Net Weight |
|
