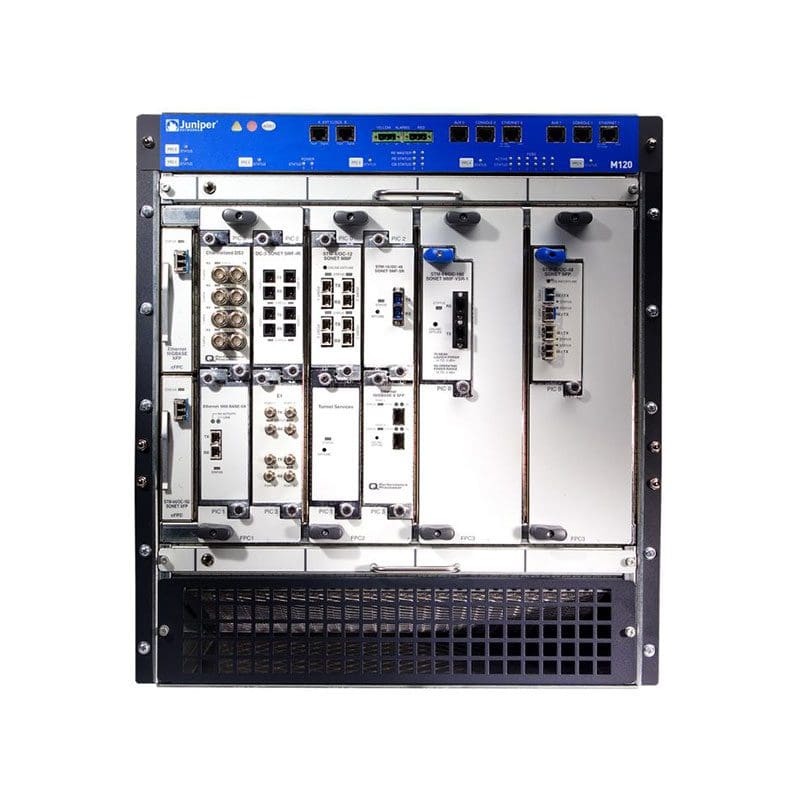

Refurbished M120BASE-DC Juniper M-series M120 modular
Refurbished M120BASE-DC Overview
The M120 Multiservice Edge Router is the newest addition to the industry-leading Juniper Networks M-series product family. The M120 delivers support for 128 GE subscriber ports, with 10 GB Ethernet or OC 192 uplink capability in an affordable, compact form factor. Ideal for supporting high-bandwidth converged edge routing applications, the M120 platform is designed to facilitate service aggregation for the multiplay needs of service providers and enterprise users.
$3,070.00
Shipping calculated at checkout.
Refurbished M120BASE-DC Technical Specifications
Juniper Networks M-series M120 modular expansion base desktop
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks M-series |
| Model | M120 |
| Packaged Quantity | :1 |
Chassis
| Supported Devices / Modules Qty :8 |
Processor
| Installed Qty | :1 |
|---|---|
| Clock Speed | :1 GHZ |
RAM
| Installed Size | :2 GB |
|---|
Hard Drive
| Capacity | :40 GB |
|---|
Networking
| Type | Modular expansion base |
|---|---|
| Form Factor | Desktop |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Frame Relay, ATM |
| Remote Management Protocol | SNMP 3, HTTP, SNMP 2 |
| Status Indicators | Status |
| Key Features | VPN support |
| Features | Modular design, IPv6 support, Manageable, High Availability, MPLS support, Quality of Service (QoS), VPN support |
Expansion Slots
| Expansion Slots | :8 expansion slot |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Nominal Voltage | DC -40 -60 V |
Miscellaneous
| Height (Rack Units) | :12 |
|---|---|
| Compliant Standards | EN 61000-4-2, EN 61000-3-2, EN 61000-4-5, CSA C22.2 No. 60950-00, UL 60950, BSMI, EN 61000-4-3, EN 60950, EN55022 Class B, VCCI Class B ITE, EMC, FCC Part 15 B, EN 61000-4-6, IEC 825-1/EN 60825-1 class 1, EN 61000-4-4, AS/NZ 3548 Class B, EN 61000-4-11, NEBS level 3 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :25.7 inch |
| Height | :20.7 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
