JSA5500-BSE Technical Specifications

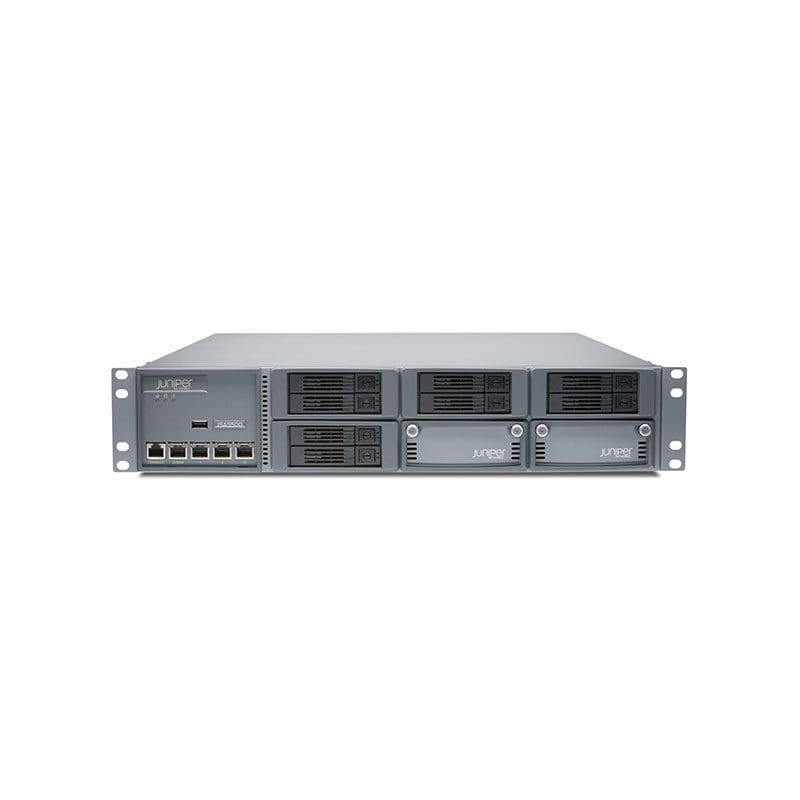

Juniper Networks JSA Series JSA5500 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks JSA Series |
| Model | JSA5500 |
| Packaged Quantity | :1 |
Processor
| Installed Qty | :2 |
|---|
RAM
| Installed Size | :96 GB |
|---|---|
| Storage | Controller |
| RAID Level | RAID 10 |
Hard Drive
| Type | HDD |
|---|---|
| Hot-Swap | Hot-swap |
| Interface Type | Serial ATA-300 / SAS |
| Installed Qty | :8 |
| Capacity | :1 TB |
Performance
| Performance :Event traffic | 1000 events per second, Flow capacity: 600000 flows per second |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Ports Qty | :4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, Ethernet |
| Data Transfer Rate | :1 GBps |
| Features | Flow control, Redundant hot swappable fans, J-Flow, sFlow, IPFIX, Store and forward |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :1 x management – RJ-45, 4 x 1000Base-T – RJ-45 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :560 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
| 80 PLUS Certification | :80 PLUS |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Encryption Algorithm | SHA |
| Compliant Standards | IEC 60950-1, EN 60825-1, FCC Class A certified, PCI DSS, HIPAA, VCCI Class A, SOX, EN 61000-3-2, EN 60950-1, UL 60950-1, EN55022 Class A, EN55024, CSA C22.2 No. 60950-1, EN 60825-2 |
Dimensions & Weight
| Width | :23.5 inch |
|---|---|
| Depth | :17.3 inch |
| Height | :3.5 inch |
| Weight | :41.23 lbs |
Environmental Parameters
| Min Operating Temperature | :41 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :8 – 90% (non-condensing) |
