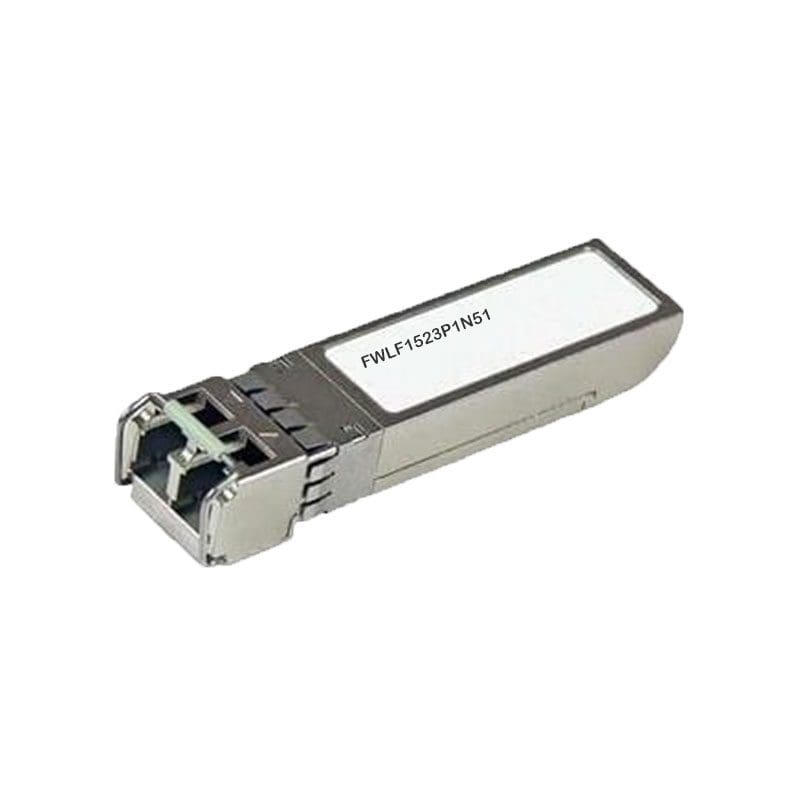

FWLF1523P1N51 Finisar Transceiver Module
FWLF1523P1N51 Overview
FINISAR is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1260 to 1620 nm, Distance/Reach 80 km, Output Power 5 dBm, Receiver Sensitivity -23 dBm.
$333.00
Shipping calculated at checkout.
FWLF1523P1N51 Technical Specifications
Finisar Transceiver Module
| Manufacturer | FINISAR |
|---|
Description
| Gigabit Ethernet | CWDM 80km SFP Optical Transceiver |
|---|---|
| Applications |
|
| Standard Supported | IEEE Std 802.3 |
Connections & Interface
| Connector | LC |
|---|---|
| Interface | 2-Wire |
General Parameters
| Data Rate | 1.25 Gb/s Fast Ethernet |
|---|---|
| Wavelength | 1260 to 1620 nm |
| Distance/Reach | 80 km |
| Output Power | 5 dBm |
Fiber Modes Single Mode Fiber SMF
| Form Factor | SFP |
|---|---|
| Receiver Sensitivity | -23 dBm |
| Power Dissipation | 0.7 W (700 mW) |
| Tx Power | 5 dBm |
| Tx/Rx Component | |
DFB(Tx)
| Supply Current | 200 to 300 mA |
|---|---|
| Supply Voltage | 3.3 V |
Temperature
| Operating Temperature display | 0 to 70 Degree C |
|---|---|
| Storage Temperature | -40 to 85 Degree C |
