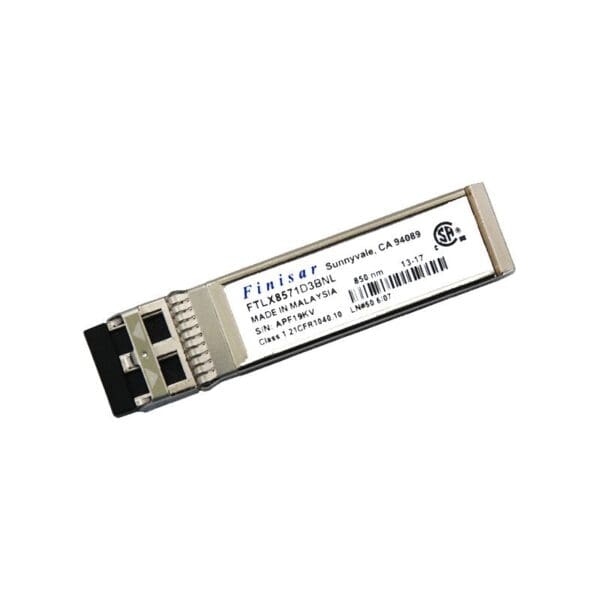

FTLX8571D3BNL Finisar Transceiver Module
FTLX8571D3BNL Overview
Finisar’s Extended Temperature 10Gb/s SFP+ transceivers are
designed for use in 10-Gigabit Ethernet and 10-Gigabit Fibre Channel links over
multimode fiber.
$73.00
Shipping calculated at checkout.
FTLX8571D3BNL Technical Specifications
Finisar Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Hot plug | gable SFP+ footprint |
| Supports | 9.95 to 10.5 Gb/s bit rates 10 Gigabit Ethernet |
| Power | dissipation < 1W |
- Extended temperature range
- 0°C to 85°C
Single 3.3Vpower supply
| Maximum | link length of 300m on |
|---|---|
| 2000 MHZ-km MMF | |
Uncooled 850nm VCSEL laser
| Receiver | limiting electrical |
|---|---|
| interface |
|
| Product | Transceivers |
| Wavelength | 860 nm |
| Data Rate | 9.95 GBd to 10.5 GBd |
| Form Factor or Case Style | SFP |
| Emitting Source | VCSEL |
| Operating Supply Voltage | 3.14 V to 3.46 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Application | Ethernet |
| Connector Type | LC |
| Brand | Coherent |
| Mounting Style | Snap-In |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
