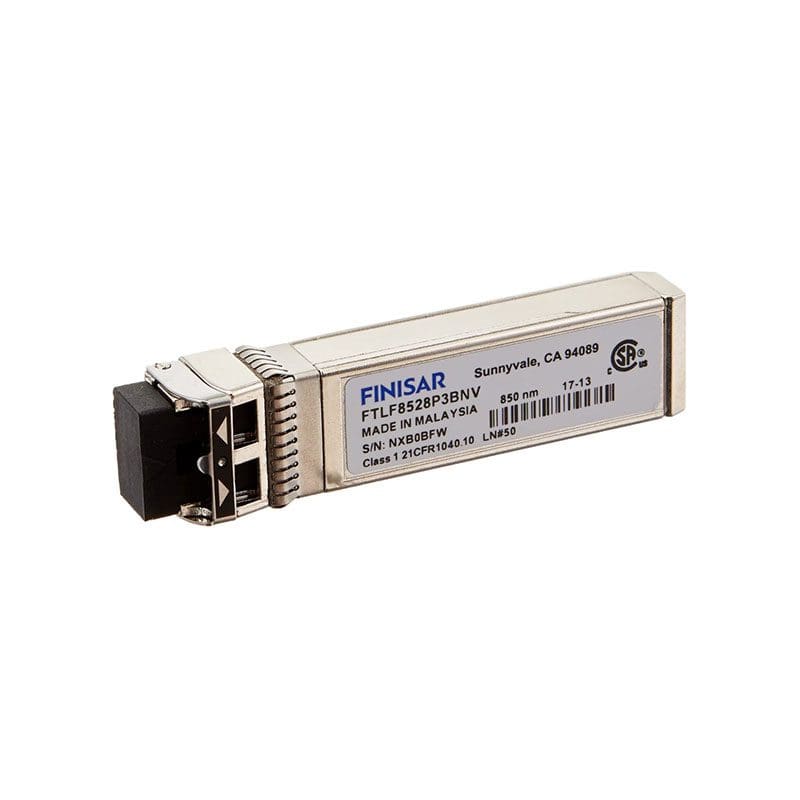

FTLF8528P3BNV Finisar Transceiver Module
FTLF8528P3BNV Overview
Finisar’s FTLF8528P3BNV SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber. They are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0,
$98.00
Shipping calculated at checkout.
FTLF8528P3BNV Technical Specifications
Finisar Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Up to 8.5 Gb/s bi-directional data links 10 Gigabit Ethernet | |
| Hot plug | gable SFP+ footprint |
- Built-in digital diagnostic functions
- 850nm Oxide VCSEL laser transmitter
- LC Duplex connector
- 50m on 50/125μm MMF
- 150m on high-bandwidth
- 50/125um (OM3) MMF
- Metal enclosure, for lower EMI
- Single 3.3V power supply
<0.5W power dissipation
| Extended operating temperature range | -5°C to 85°C |
|---|---|
| Product | Transceivers |
| Wavelength | 850 nm |
| Data Rate | 8.5 GBd |
| Fibre Type | Multimode |
| Form Factor or Case Style | SFP+ |
| Rise Time | 120 ps |
| Emitting Source | VCSEL |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | – 5 C |
| Maximum Operating Temperature | + 70 C |
| Application | Ethernet, Fibre Channel |
| Connector Type | LC |
| Transmission Distance | 100 m |
