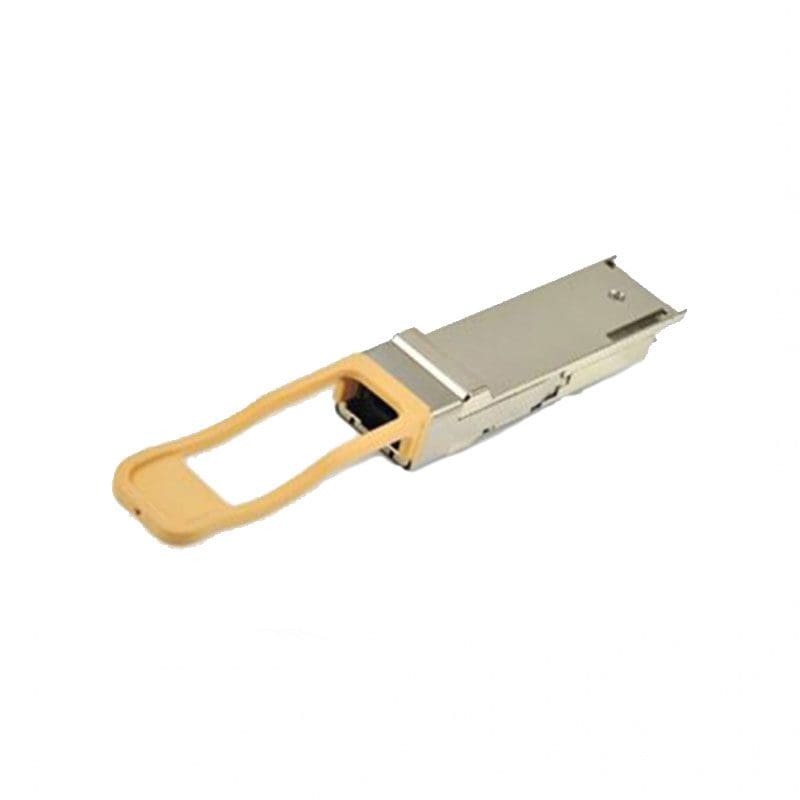

FTL4E1QM1C Finisar Transceiver Module
FTL4E1QM1C Overview
Fibre Optic Transmitters, Receivers, Transceivers 40G Base-ER4 OTU3 Multirate 40KM QSFP+
$4,695.00
Shipping calculated at checkout.
FTL4E1QM1C Technical Specifications
Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Hot-pluggable | QSFP Plus form factor |
| Supports | 39.8 Gb/s to 44.6 Gb/s aggregate bit rates 40 Gigabit Ethernet |
| Power | dissipation < 3.5W |
- 18.5 dB link insertion loss budget
- Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
| Maximum | link length of 40km on Single Mode Fiber (SMF) |
|---|---|
| Uncooled 4x10Gb/s CWDM transmitter | |
XLPPI electrical interface
| Duplex | LC Connector |
|---|---|
| Built-in digital diagnostic functions, including Tx/Rx power monitoring | |
