FG100EFUSGBDL-980-36 Technical Specifications

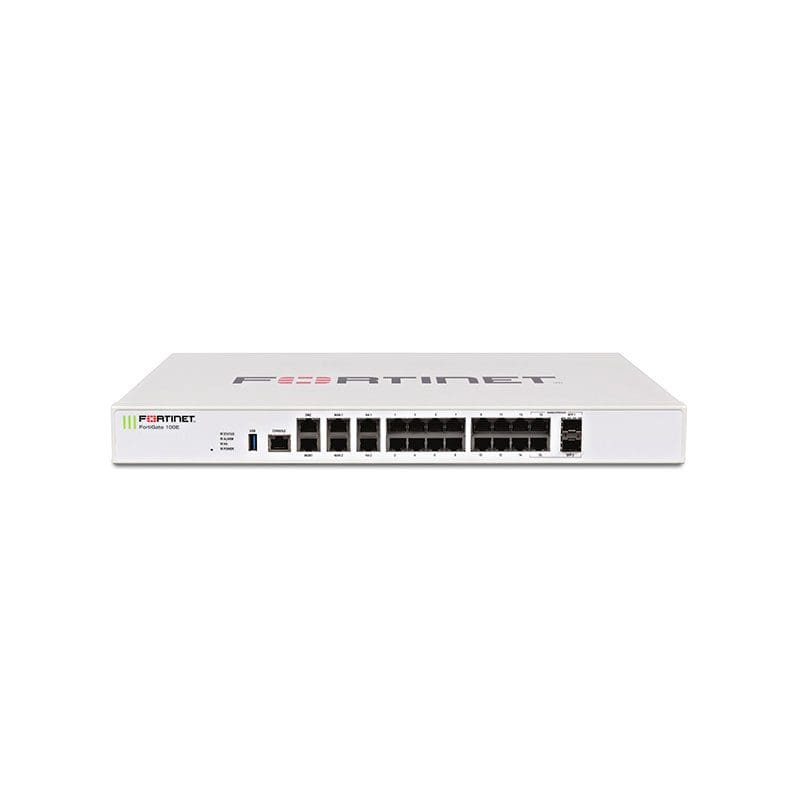

Fortinet FortiGate FG-100EF Netwrok Security/Firewall Appliance
| Manufacturer | Fortinet, Inc |
|---|---|
| Manufacturer Part Number | FG-100EF-USG-BDL-980-36 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 100E |
| Product Model | FG-100EF |
| Product Name | FortiGate FG-100EF Netwrok Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
Technical Information
Technical Information
| Firewall Protection Supported | Endpoint Protection, Secure IPsec VPN Connectivity, Malware Protection, Anti-spam, Antivirus, Virus Protection, Outbreak Prevention, Web Content Filtering, Application Control, Threat Protection |
|---|---|
| Encryption Standard | AES (256-bit), SHA-256 |
| Number of VPN Supported 300 | |
Interfaces/Ports
| Total Number of Ports | 14 |
|---|---|
| USB | Yes |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
|---|---|
| Network Standard | 10/100/1000Base-T, 1000Base-X |
Wireless Specifications
| Wireless LAN | No |
|---|
I/O Expansions
| Number of Total Expansion Slots | 8 |
|---|---|
| Expansion Slot Type | SFP |
| Number of SFP Slots | 8 |
Management & Protocols
| Manageable | Yes |
|---|
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Height | 1.8″ |
| Width | 17″ |
| Depth | 10″ |
| Weight (Approximate) | 7.28 lb |
