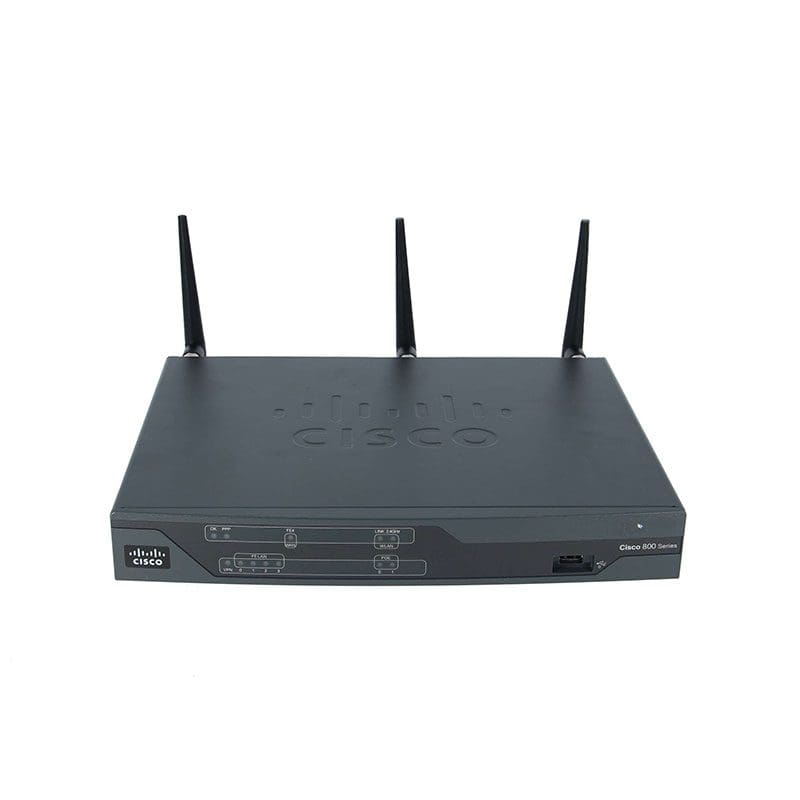

Refurbished CISCO881GW-GN-A-K9 Technical Specifications
Cisco 881G Ethernet Sec Router w/ 3G B/U 802.11n FCC
| Product Number |
CISCO881GW-GN-A-K9 |
| Description |
Cisco 881 Ethernet Security Router with 3G, 802.11n FCC Compliant |
| Default and maximum flash memory |
128 MB |
WAN
| Fast Ethernet |
- Multimode VDSL2 and ADSl2/2+ over ISDN with ISDN backup
- Multimode VDSL2 and ADSl2/2+ over basic telephone service
- ADSL2/2+ over ISDN with ISDN backup
- ADSL2/2+ over basic telephone service with ISDN backup
- VDSL2 over basic telephone service with ISDN backup
- Multimode G.SHDSL (2- and 4-wire support) with ISDN backup
|
Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and high-speed downlink packet access (HSDPA)
LAN switch
Managed 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto crossover
| Standard |
802.11g/n access point based on IEEE 802.11n draft 2.0 standard |
Optional on all models
| Console or auxiliary port |
RJ-45 |
One USB 1.1 port for advanced security features such as security tokens or USB flash memory
| One USB 1.1 port on Cisco 880 Series Routers |
USB devices supported
| USB |
eTokens |
| USB |
flash memory |
- 3G express card modem
- Available
- External power supply
- Universal 100 to 240 VAC input; 60W, 12 VDC output
Physical dimensions and weight
Product dimensions, wireless models (H x W x D)
1.9 x 12.8 x 10.4 in. (48 x 325 x 264 mm) (includes rubber feet)
1.75 x 12.8 x 10.4 in. (44 x 325 x 264 mm) (without rubber feet; excludes antennas)
| Weight |
5.5 lb (2.5 kg) maximum |
Power
Product power specifications
| AC input voltage |
100 to 240 VAC |
| Frequency |
50 to 60 Hz |
| Maximum output power |
60W |
| Output voltages |
12 VDC |
Optional internal PoE with external adapter
| Maximum output power |
80W |
| External output voltage |
48 VDC |
Approvals and compliance
Emissions
| 47 CFR Part 15 |
2006 |
| Cispr22 |
2005 |
| En300386 |
V1.3.3: 2005 |
| En55022 |
2006 |
| En61000-3-2 |
2000 [Inc amd 1 and 2] |
| En61000-3-3 |
1995 [+ amd 1: 2001] |
| ICES-003 Issue 4 |
2004 |
| Kn 22 |
2005 |
| Vcci |
V-3/2006.04 |
Immunity
| Cispr24 |
1997 [+ amd 1 and 2] |
| En300386 |
V1.3.3: 2005 |
| En50082-1 |
1992 |
| En50082-1 |
1997 |
| En55024 |
1998 [+ amd 1 and 2] |
| En61000-6-1 |
2001 |
The following are supported on teleworker models
- CFR 47 Part 15 Class B
- EN60555-2 Class B
- EN55022 Class B
- ICES-003, Issue 2, Class B, April 1997S
Environmental operating range
| Nonoperating temperature |
-4 to 149°F (-20 to 65°C) |
| Nonoperating humidity |
5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude |
0 to 15,000 ft (0 to 4570m) |
Operating temperature
| At sea level |
32 to 104°F (0 to 40°C) |
| Up 10,000 ft |
32 to 77°F (0 to 25°C) |
Derating 2.7°F/10,000 ft (1.5°C/1,000 ft)
| Operating humidity |
10 to 85% relative humidity (noncondensing) |
| Operating altitude |
0 to 10,000 ft (0 to 3000m) |
