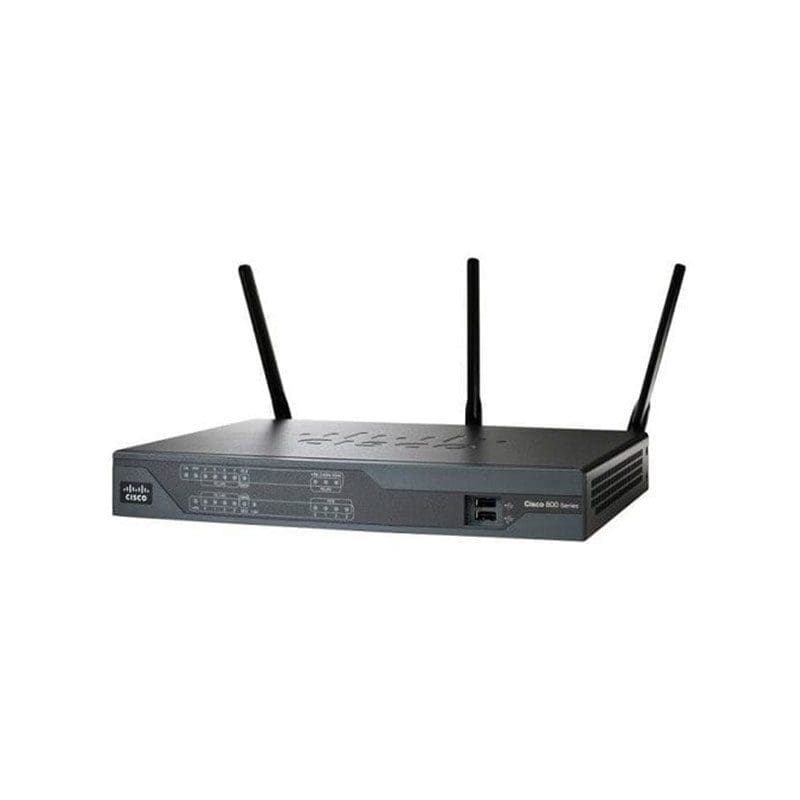

Refurbished CISCO881G-A-K9 Technical Specifications
Cisco 881G FE Sec Router with Adv IP Serv, 3G N. America GSM/HSPA
| Product Number |
CISCO881G-A-K9 |
| Description |
881G FE Sec Router with Adv IP Serv, 3G N. America GSM/HSPA |
| Default and maximum flash memory |
128 MB |
WAN
- Fast Ethernet
- Multimode VDSL2 and ADSl2/2+ over ISDN with ISDN backup
- Multimode VDSL2 and ADSl2/2+ over basic telephone service
- ADSL2/2+ over ISDN with ISDN backup
- ADSL2/2+ over basic telephone service with ISDN backup
- VDSL2 over basic telephone service with ISDN backup
- Multimode G.SHDSL (2- and 4-wire support) with ISDN backup
- Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and high-speed downlink packet access (HSDPA)
LAN switch
Managed 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto crossover
- Standard 802.11g/n access point based on IEEE 802.11n draft 2.0 standard
- Optional on all models
Console or auxiliary port
One USB 1.1 port for advanced security features such as security tokens or USB flash memory
| One USB 1.1 port on Cisco 880 Series Routers |
● USB devices supported
- USB eTokens
- USB flash memory
- 3G express card modem
- Available
External power supply
| Universal 100 to 240 VAC input; 60W, 12 VDC output |
Physical dimensions and weight
- 1.9 x 12.8 x 9.8 in. (48 x 325 x 249 mm) (includes rubber feet)
- 1.75 x 12.8 x 9.8 in. (44 x 325 x 249 mm) (without rubber feet)
| ● Weight |
5.5 lb (2.5 kg) maximum |
Power
| ● AC input voltage |
100 to 240 VAC |
| ● Frequency |
50 to 60 Hz |
| ● Maximum output power |
60W |
| ● Output voltages |
12 VDC |
Optional internal PoE with external adapter
| ● Maximum output power |
80W |
| ● External output voltage |
48 VDC |
| Approvals and compliance |
Emissions
| ● 47 CFR Part 15 |
2006 |
| ● Cispr22 |
2005 |
| ● En300386 |
V1.3.3: 2005 |
| ● En55022 |
2006 |
| ● En61000-3-2 |
2000 [Inc amd 1 and 2] |
| ● En61000-3-3 |
1995 [+ amd 1: 2001] |
| ● ICES-003 Issue 4 |
2004 |
| ● Kn 22 |
2005 |
| ● Vcci |
V-3/2006.04 |
Immunity
| ● Cispr24 |
1997 [+ amd 1 and 2] |
| ● En300386 |
V1.3.3: 2005 |
| ● En50082-1 |
1992 |
| ● En50082-1 |
1997 |
| ● En55024 |
1998 [+ amd 1 and 2] |
| ● En61000-6-1 |
2001 |
The following are supported on teleworker models
| ● As/Nrz 3548 |
1992 Class B |
- CFR 47 Part 15 Class B
- EN60555-2 Class B
- EN55022 Class B
- ICES-003, Issue 2, Class B, April 1997S
Environmental operating range
| ● Nonoperating temperature |
-4 to 149°F (-20 to 65°C) |
| ● Nonoperating humidity |
5 to 95% relative humidity (noncondensing) |
| ● Nonoperating altitude |
0 to 15,000 ft (0 to 4570m) |
| Operating temperature |
| ● At sea level |
32 to 104°F (0 to 40°C) |
| ● Up 10,000 ft |
32 to 77°F (0 to 25°C) |
| Derating 2.7°F/10,000 ft (1.5°C/1,000 ft) |
| ● Operating humidity |
10 to 85% relative humidity (noncondensing) |
| ● Operating altitude |
0 to 10,000 ft (0 to 3000m) |
