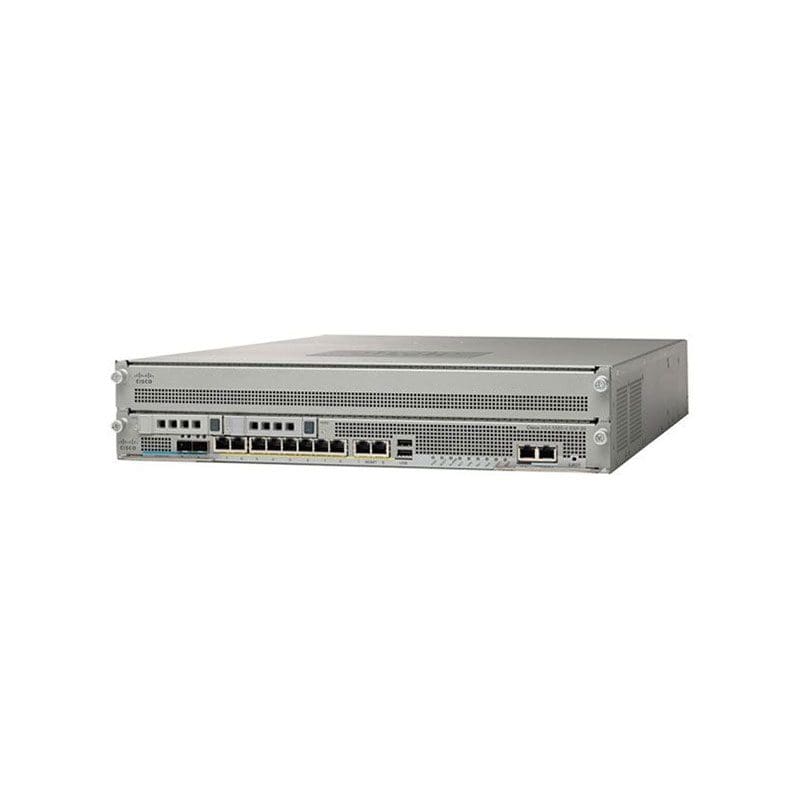

ASA5585-S60-2A-K8 Technical Specifications
Cisco ASA 5585 Series Firewall
| Cisco ASA 5585-X Firewall Edition SSP-60 bundle – security appliance | |
| Device Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable – 2U |
| RAM | 24 GB |
| Flash Memory | 2 GB |
| Ports Qty | 6 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance Firewall throughput | 35 Gbps ¦ VPN throughput: 5 Gbps ¦ Connection rate: 350000 connections per second |
| Capacity Concurrent sessions | 2000000 ¦ IPSec VPN peers: 10000 ¦ Virtual interfaces (VLANs): 250 ¦ SSL VPN peers: 2 ¦ Nodes: unlimited |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 48.3 cm x 67.3 cm x 8.8 cm |
| Extended Specification | |
General
| Depth | 67.3 cm |
|---|---|
| Device Type | Security appliance |
| Height | 8.8 cm |
| Height (Rack Units) | 2U |
| Installed Modules Qty (Max) | 1 (2) |
| Width | 48.3 cm |
Environmental Parameters
| Humidity Range Operating | 10 – 90% (non-condensing) |
|---|---|
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
Expansion / Connectivity
| Expansion Slots | 2 (total) / 1 (free) x expansion slot ¦ 4 (total) / 4 (free) x |
|---|---|
| Interfaces | 2 x 1000Base-T (management) – RJ-45 ¦ 2 x USB 2.0 – Type A ¦ 1 x management – RJ-45 ¦ 1 x management ¦ 6 x 1000Base-T – RJ-45 |
Miscellaneous
| Cables Included | 2 x network cable |
|---|---|
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 300 386 |
| Rack Mounting Kit | Included |
Networking
| Capacity Concurrent sessions | 2000000 ¦ IPSec VPN peers: 10000 ¦ Virtual interfaces (VLANs): 250 ¦ SSL VPN peers: 2 ¦ Nodes: unlimited |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Encryption Algorithm | DES |
| Features | Firewall protection, VPN support, load balancing, VLAN support |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | IPSec |
| Performance Firewall throughput | 35 Gbps ¦ VPN throughput: 5 Gbps ¦ Connection rate: 350000 connections per second |
| Ports Qty | 6 |
Power
| Installed Qty | 2 |
|---|---|
| Max Supported Qty | 2 |
| Power Device | Internal power supply – hot-plug |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Processor / Memory / Storage
| Flash Memory | 2 GB |
|---|---|
| RAM | 24 GB |
