AIR-AP1852I-S-K9C Technical Specifications

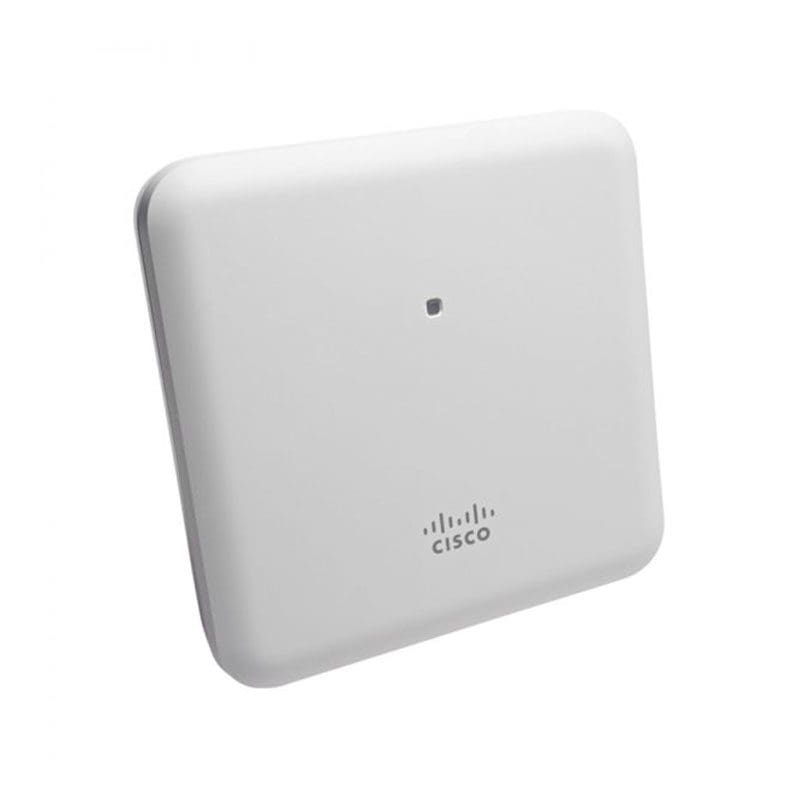

Cisco Aironet 1852i Access Point
| Part |
Number |
| AIR-AP1852I-S-K9C |
| Description |
- 802.11ac Wave 2 Access Point, 4×4:4, Internal-Ant, S Regulatory Domain
|
Features
- – MRC
- – 802.11ac beamforming (transmit beamforming)
- – 20-, 40-, and 80-MHz channels
– PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)
| – Packet aggregation |
A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
- – 802.11 DFS
- – CSD support
Regulatory Domain
S (S regulatory domain)
- – 2.412 to 2.472 GHz; 3 channels
- – 5.180 to 5.320 GHz; 8 channels
- – 5.500 to 5.700 GHz;, 11 channels
- – 5.745 to 5.825 GHz; 5 channels
Antenna
| Internal |
Antenna |
| Interfaces |
- – Management console port (RJ-45)
- – USB 2.0 (enabled via future software)
|
| Dimensions (W x L x H) |
- 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
|
| Weight |
|
