Refurbished 7604-S323B-8G-P Technical Specifications

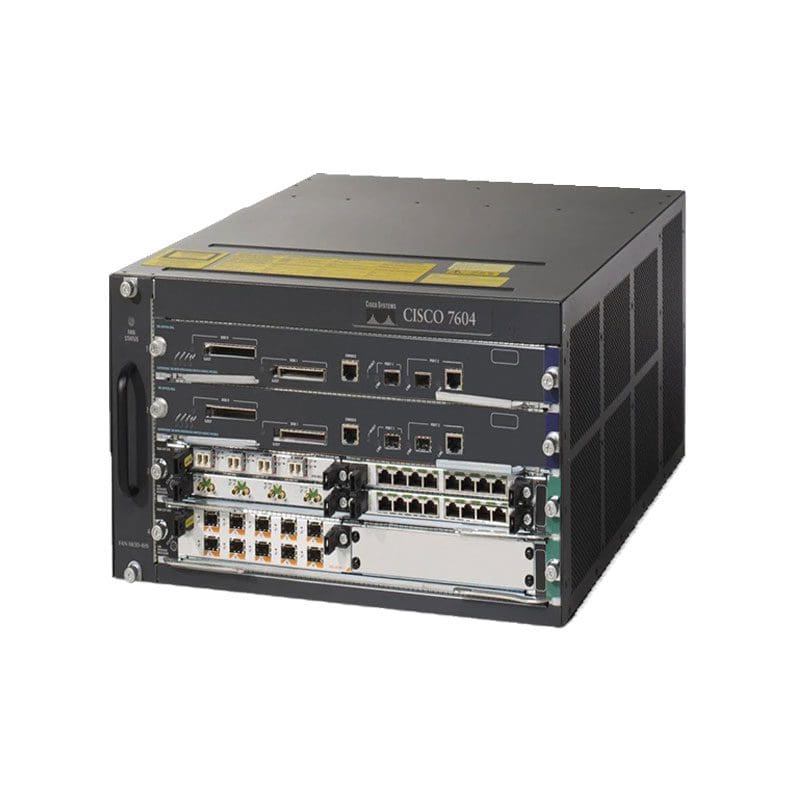

Cisco 7604 Chassis, 4-slot, SUP32-8GE-3B, PS
| Product Description | Cisco 7604 – router – desktop – with Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A Chassis |
|---|---|
| Device Type | Router – with Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A |
| Enclosure Type | Desktop – modular – 5U |
| Data Link Protocol | Gigabit Ethernet |
| Routing Protocol | IGMP, PIM-SM, IGMPv3, PIM-SSM, Multiprotocol BGP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
| Features | Flow control, DHCP support, ARP support, DoS attack prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 17.5 in x 21.7 in x 8.7 in |
General
| Device Type | Router – with Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A |
|---|---|
| Enclosure Type | Desktop – modular – 5U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Routing Protocol | IGMP, PIM-SM, IGMPv3, PIM-SSM, Multiprotocol BGP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
| Authentication Method | Secure Shell v.2 (SSH2) |
| Features | Flow control, DHCP support, ARP support, DoS attack prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak |
| RAM | 256 MB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, link OK |
Expansion / Connectivity
| Interfaces Management | 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Hi-Speed USB : 2 x ¦ 8 x SFP (mini-GBIC) |
|---|---|
| Expansion | Slot(s) 4 (total) / 3 (free) x expansion slot ¦ CompactFlash Card – type II |
| Installed Modules Qty (Max) | 1 (installed) / 4 (max) |
Power
| Power Device | Power supply – redundant |
|---|---|
| Installed Qty | 2 (max) |
| Voltage Required | AC 120/230 V |
Miscellaneous
| Width | 17.5 in |
|---|---|
| Depth | 21.7 in |
| Height | 8.7 in |
| Compliant Standards | NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
