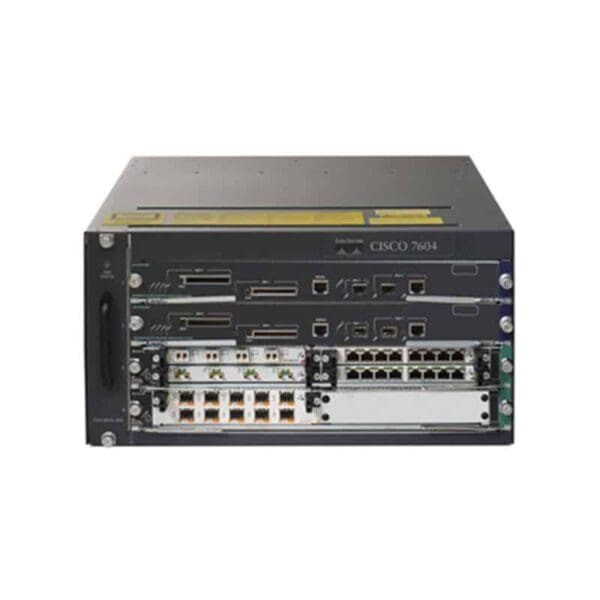

Refurbished 7604-RSP7C-10G-P Cisco 7604 Router Bundle
Refurbished 7604-RSP7C-10G-P Overview
The Cisco 7604 Router is a compact, high-performance router designed in a 4-slot form factor for deployment at the network edge, where robust performance and IP/Multi-protocol Label Switching (MPLS) services are necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7604 also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.
$5,880.00
Shipping calculated at checkout.
Refurbished 7604-RSP7C-10G-P Technical Specifications
Cisco 7604 Chassis,4-slot,RSP720-3C-10GE,PS
General
| Device Type | Router – with Cisco 7604 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE) |
|---|---|
| Enclosure Type | Desktop, rack-mountable – modular – 5U |
| Product Type | Router Chassis |
Router Bundle
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance Switching capacity | 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps |
| Capacity ACL rules | 128000 ¦ NetFlow entries: 128000 |
| Network / Transport Protocol | TCP/IP, ICMP/IP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM, GRE |
| Features | Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00 |
| RAM | 2 GB |
| Flash Memory | 512 MB |
Expansion / Connectivity
| Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management | 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC) |
|---|---|
| Expansion Slots | 4 (total) / 3 (free) x expansion slot ¦ 2 (total) / 1 (free) x CompactFlash Card – type II |
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
Miscellaneous
| Mounting | Kit Included |
|---|---|
| Mtbf | 7 years |
Dimensions & Weight
| Width | 17.5 in |
|---|---|
| Depth | 21.7 in |
| Height | 8.7 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
