49Y8578 IBM 10 Gigabit Ethernet Sw Sfp+ Transceiver
49Y8578 Overview

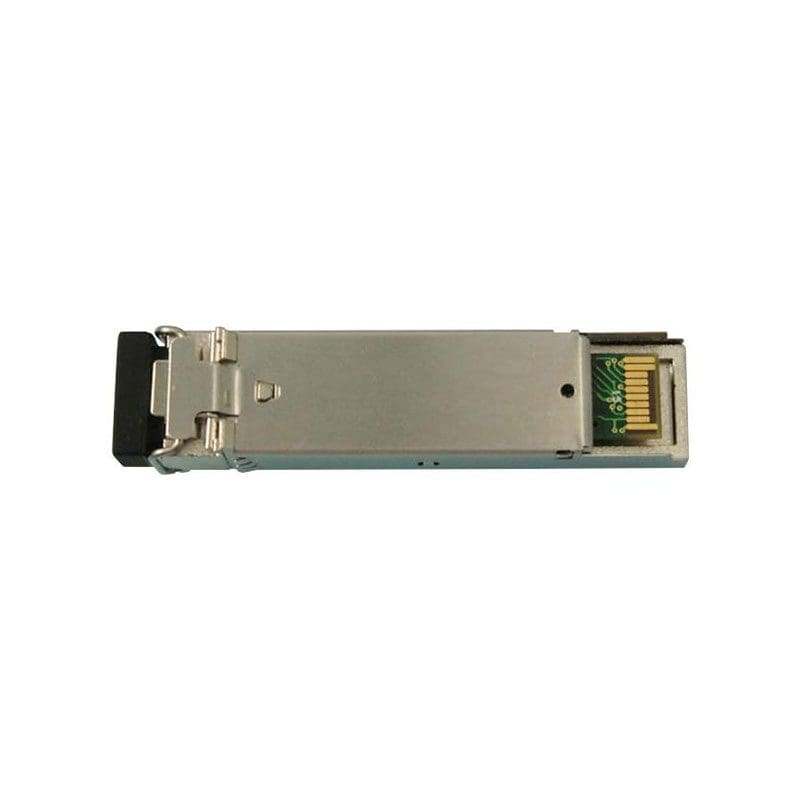

IBM 10 Gigabit Ethernet Sw Sfp+ Transceiver
$80.00
Shipping calculated at checkout.
49Y8578 Technical Specifications
IBM 10 Gigabit Ethernet Sw Sfp+ Transceiver
| Manufacturer | IBM |
|---|---|
| Manufacturer Part # 49Y8578Device Type | Transceiver Module |
| Enclosure Type | Plug-in Module |
Networking
| Connectivity Technology | Wired |
|---|---|
| Cabling Type | 10gbase-sw |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
Expansion / Connectivity
| Interfaces | 1 X Network |
|---|---|
| Compatible Slots | 1 X Sfp |
| Co2 Savings | 0 |
| SFP transceiver type | Fiber optic |
| Data transfer | 10 Gbp/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SW |
| Wavelength | 850 nm |
| Cabling technology | 10GBase-SW |
| Auto MDI/MDI-X | Yes |
| Cable type | Fiber optic |
| Hot-Plug support | Yes |
| Certification | MSA |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage relative humidity (H-H) | 10 – 85% |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
