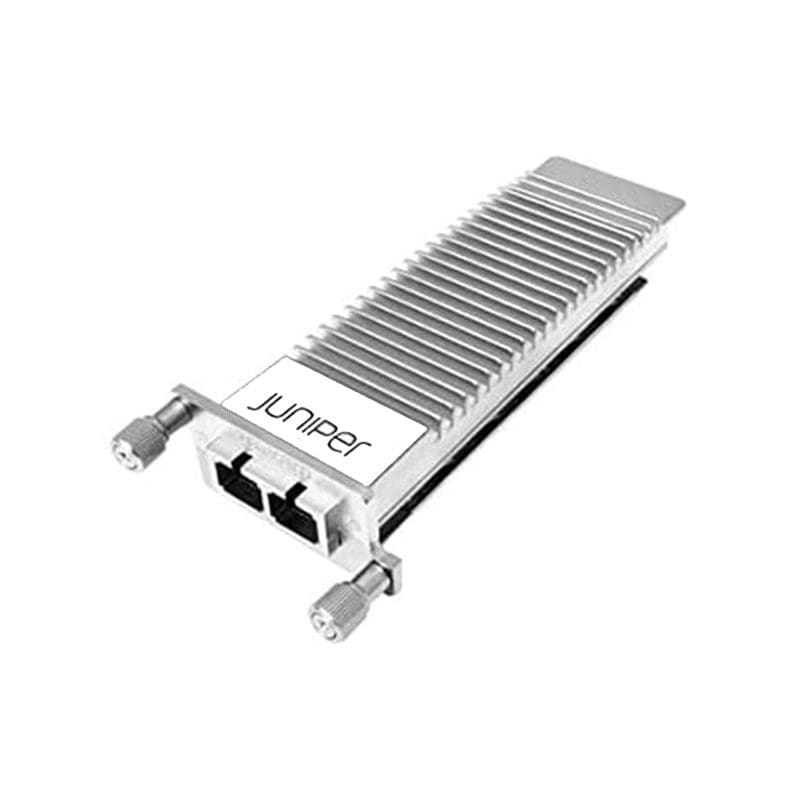

XENPAK-1XGE-ZR Juniper 10GBase-ZR XENPAK Optic Module
XENPAK-1XGE-ZR Overview
This Juniper Networks XENPAK transceiver provides 10GBase-ZR throughput up to 80km over single-mode fiber (SMF) at a wavelength of 1550nm using a SC connector.
$14,499.00
Shipping calculated at checkout.
XENPAK-1XGE-ZR Technical Specifications
Juniper 10GBase-ZR XENPAK Optic Module
| Manufacturer | Juniper Networks, Inc |
|---|---|
| Manufacturer Part Number | XENPAK-1XGE-ZR |
| Brand Name | Juniper |
| Product Name | 10GBase-ZR XENPAK Optic Module |
| Product Type | XENPAK |
Technical Information
| Application/Usage | Data Networking |
|---|
Interfaces/Ports
| Interfaces/Ports Details | 1 x SC Duplex 10GBase-ZR |
|---|
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Maximum Data Transfer Rate | 10 |
Miscellaneous
Additional Information
| Length | 50-mile / 80-km reach on 9/125 micrometer SMF |
|---|---|
| Wavelength | 1,530 to 1,565 nm |
| Average launch power | 0 through 4 dBm |
| Receiver saturation | -7 dBm |
| Receiver sensitivity | -24 dBm |
Compatibility
| Supported Module | PC-1XGE-XENPAK |
|---|---|
| Supported Platform | M320, T320, T640 |
