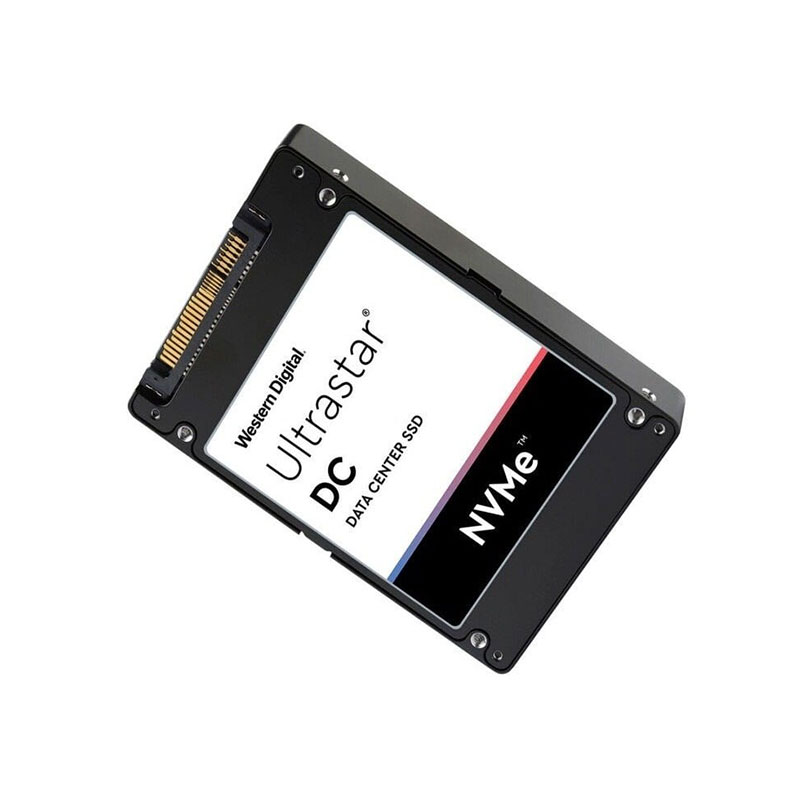

WUS4C6432DSP3X1 Western Digital 3.2TB Ultrastar DC SN840 NVME Dual Port PCIE SSD

WUS4C6432DSP3X1 Overview

The Western Digital WUS4C6432DSP3X1 3.2TB Ultrastar DC SN840 SSD is a high-performance, enterprise-grade NVMe solid-state drive designed for mission-critical data center environments that demand superior reliability, endurance, and low latency. Featuring dual-port PCIe Gen3 x4 NVMe connectivity, it ensures continuous data access, redundancy, and high availability—ideal for enterprise servers, SANs, and all-flash arrays.Built with TLC NAND flash and the U.2 2.5-inch form factor, the Ultrastar DC SN840 delivers exceptional throughput, scalability, and sustained performance under intensive workloads such as virtualization, analytics, and online transaction processing (OLTP). The dual-port design allows simultaneous data paths for maximum fault tolerance and optimized I/O operations in redundant configurations.This SSD integrates enterprise-grade features including end-to-end data path protection.

Shipping calculated at checkout.
SKU: WUS4C6432DSP3X1 Categories: Brand:

WUS4C6432DSP3X1 Technical Specifications

Western Digital 3.2TB Ultrastar DC SN840 NVME Dual Port PCIE SSD

Part Number WUS4C6432DSP3X1
Brand Western Digital
Model Ultrastar DC SN840
Form Factor 2.5-inch U.2
Interface PCIe 3.1 x4 NVMe Dual Port
Capacity 3.2TB
NAND Type 3D TLC
Usage Type Mixed Use / Enterprise
Read Speed Up to 3,400 MB/s
Write Speed Up to 2,300 MB/s
Random Read IOPS Up to 780K
Random Write IOPS Up to 160K
Endurance ~3 DWPD
Mtbf 2.5 million hours
Power Loss Protection Yes
Encryption AES 256-bit SED
Operating Temperature 0°C–70°C
