WUH722624AL5204 Technical Specifications

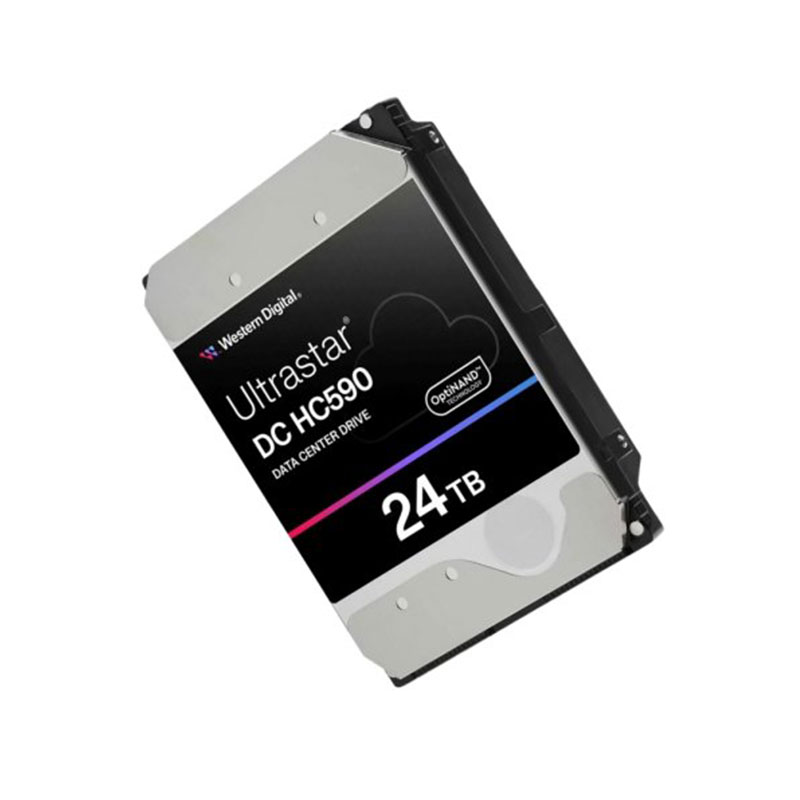

Western Digital Ultrastar DC HC590 24TB 7200RPM SAS 12Gb/s SE 3.5-Inch Hard Drive
| Manufacturer | Western Digital |
|---|---|
| Manufacture Part Number | WUH722624AL5204 |
| Series | Ultrastar DC HC590 |
| Storage Capacity | 24 Terabytes (24TB) |
| Interface Type | SAS 12Gb/s (Serial Attached SCSI) |
| Form Factor | 3.5-Inch LFF (Large Form Factor) |
| Recording Technology | UltraSMR (with OptiNAND™ integration) |
| Enclosure Design | HelioSeal® (Helium-filled) |
| Performance | Metrics |
| Spindle Rotation Speed | 7200 RPM |
| Data Buffer (Cache) | 512 MB |
| Sustained Transfer Rate | Up to 298 MiB/s (Maximum) |
| Interface Transfer Rate | 12.0 Gb/s |
| Average Latency | 4.16 ms |
Reliability & Integrity
| MTBF (Mean Time Between Failure) | 2,500,000 Hours |
|---|---|
| AFR (Annualized Failure Rate) | 0.35% |
| Load/Unload Cycles | 600,000 |
Power & Environmental
| Operating Power (Typical) | 9.8 Watts |
|---|---|
| Idle Power (Typical) | 5.8 Watts |
| Power Efficiency Index | Watts/TB optimization for TCO reduction |
