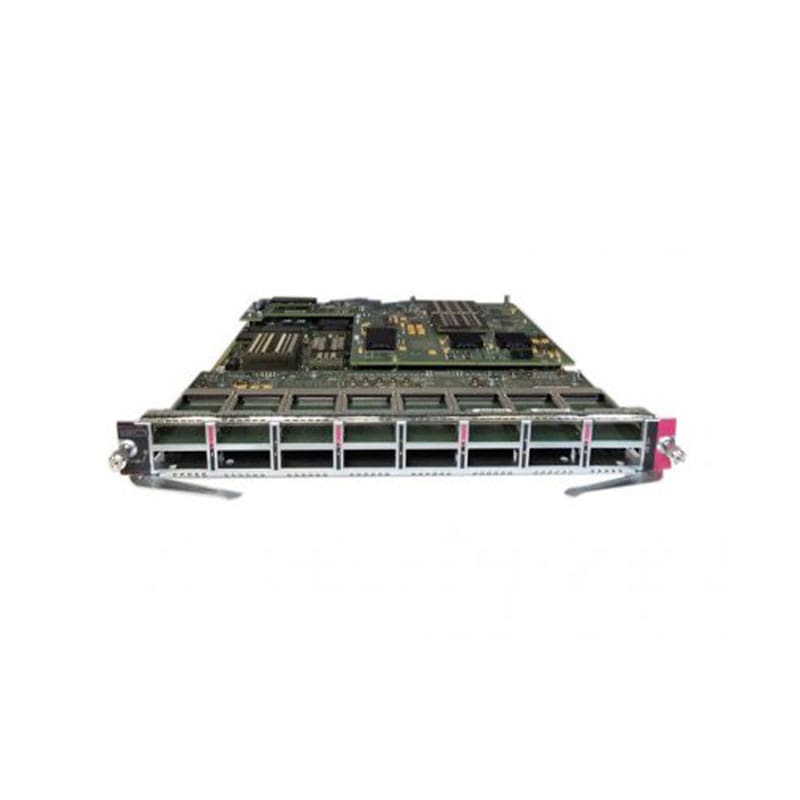

WS-X6816-10G-XL++= Cisco Catalyst 6500 16 x RJ-45 Ports 10GBase-T Gigabit Ethernet Interface Module
WS-X6816-10G-XL++= Overview
The 6800 series 16-port 10 Gigabit Ethernet Fiber Module is suitable for deployment in access and aggregation network in campus and data center. The 6800 Series 16-port 10 Gigabit Ethernet Fiber Module supports IEEE 802.3ad link aggregation and Cisco distributed EtherChannel technology for fault-tolerant connectivity. In addition, it supports hardware-based multicast replication, quality of service (QoS), access control lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications.
$40,999.00
Shipping calculated at checkout.
WS-X6816-10G-XL++= Technical Specifications
Cisco Catalyst 6500 16 x RJ-45 Ports 10GBase-T Gigabit Ethernet Interface Module
| Device Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
Networking
| Connectivity Technology | Wired |
|---|---|
| Cabling Type | Ethernet 10GBase-X |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Performance | Switching fabric bandwidth: 40 Gbps |
| Capacity | ACL entries: 256000 ¦ NetFlow entries: 1024000 ¦ Virtual interfaces (VLANs): 4000 |
| MAC Address Table Size | 128K entries |
| Status Indicators | Status, link/activity |
Processor / Memory
| RAM | 1 GB |
|---|---|
| Interfaces | 16 – X2 |
| TAA Compliant | Yes |
Expansion / Connectivity
| Width | 14 in |
|---|---|
| Depth | 16 in |
| Height | 1.2 in |
| Weight | 13.6 lbs |
