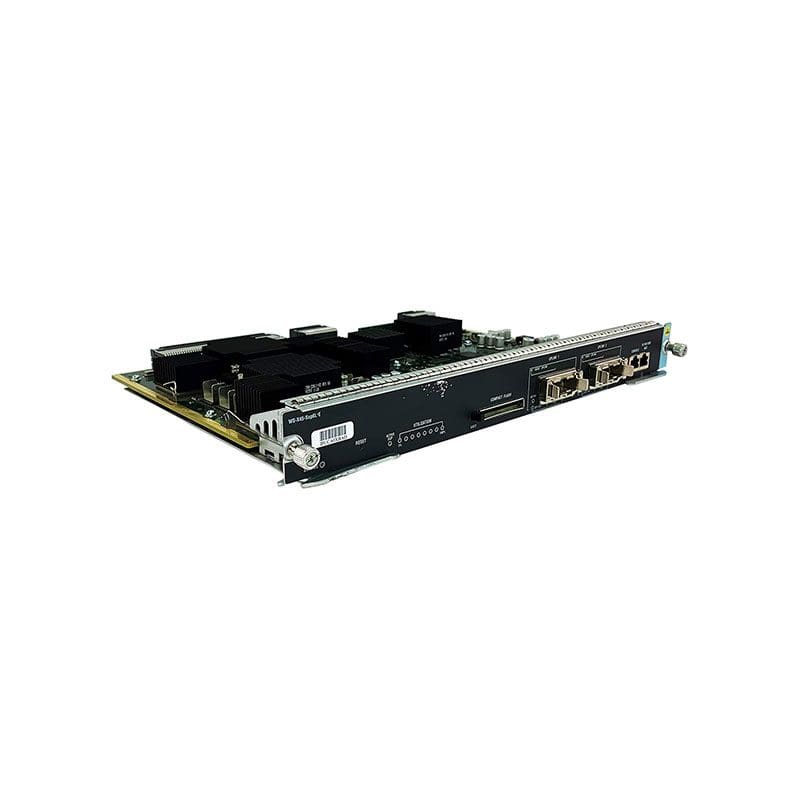

WS-X45-SUP6L-E Cisco Supervisor Engine 6L-E Control Processor
WS-X45-SUP6L-E Overview
The Cisco Catalyst Supervisor Engine 6L-E also provides flexibility and an easy migration path to 10 Gigabit Ethernet uplinks with dual-purpose X2 slots that can accommodate wire-speed 10 Gigabit Ethernet optics or Cisco TwinGig Converter Modules, enabling Gigabit Ethernet SFP optics.
$1,399.00
Shipping calculated at checkout.
WS-X45-SUP6L-E Technical Specifications
Cisco Supervisor Engine 6L-E – control processor
| Manufacturer | CISCO DS HARDWARE DIRECT |
|---|---|
| Brand | Cisco |
| Product Line | Cisco Supervisor Engine |
| Model | :6L-E |
| Packaged Quantity | :1 |
RAM
| Technology | SDRAM |
|---|---|
| Installed Size | :512 megabyte |
| Max Supported Size | :1 GB |
Optical Storage
| Type | None |
|---|
Card Reader
| Supported Flash Memory Cards | CompactFlash Card |
|---|
Performance
| Performance :IPv4 routing | 225 Mpps, IPv6 routing: 110 Mpps, Switching capacity: 280 Gbps |
|---|
Capacity
| Capacity :IPv4 routes | 57000, MAC addresses: 55000, IPv6 routes: 30000, Virtual interfaces (VLANs): 4096, QoS hardware entries: 32000, Security services entries: 32000, Hardware forwarding entries: 57000 |
|---|
Networking
| Type | Control processor |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet |
| Routing Protocol | Static IP routing, RIP, EIGRP, RIP-2 |
| Network / Transport Protocol | NTP, ICMP/IP |
