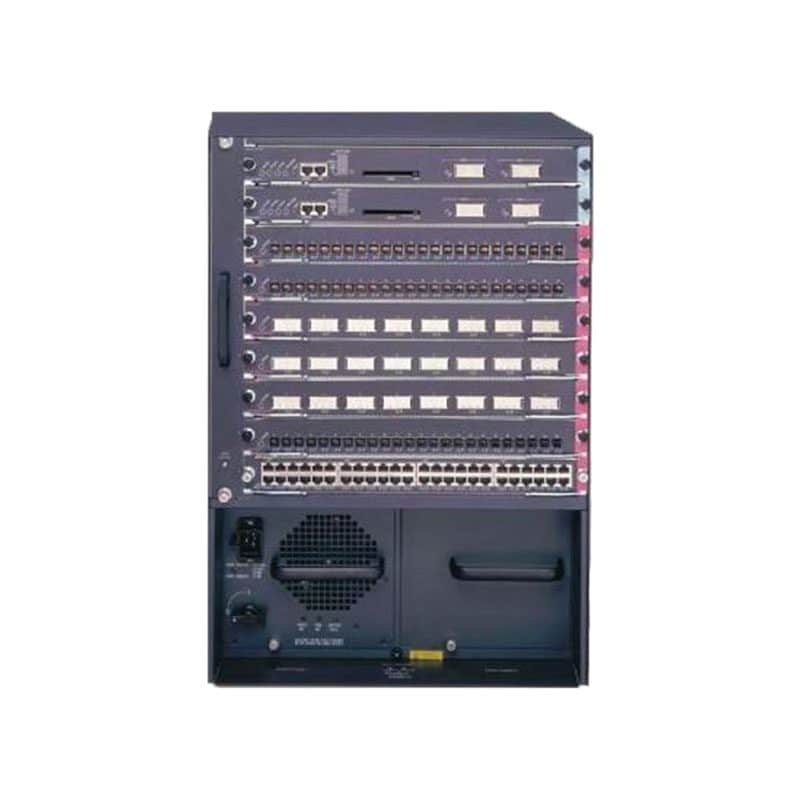

Refurbished WS-C6509E-CSM Technical Specifications
Cisco 6500 Switch CSM, 6509, Sup720 Bundle
| Manufacturer | Cisco |
|---|---|
| Manufacturer Part # | WS-C6509E-CSM |
| Product Line | Cisco Catalyst |
| Product Description | Cisco Catalyst C6509E – switch – desktop |
| Device Type | Switch Bundle |
| Enclosure Type | Desktop 15U |
| Interfaces | Gigabit Ethernet |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE |
| Features | Layer 4 switching, layer 3 switching, layer 2 switching, NAT support, load balancing, VLAN support, traffic shaping, DoS attack prevention, IPv6 support |
| Compliant Standards | IEEE 802.1x |
| Dimensions (WxDxH) | 17.5 in x 18.1 in x 24.5 in |
General
| Device Type | Switch – L4 |
|---|---|
| Enclosure Type | Desktop – 15U |
| Interfaces | Gigabit Ethernet |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, EIGRP, IGMP, GRE |
| Features | Layer 4 switching, layer 3 switching, layer 2 switching, NAT support, load balancing, VLAN support, traffic shaping, DoS attack prevention, IPv6 support |
| Compliant Standards | IEEE 802.1x |
Expansion / Connectivity
| Interfaces | 1 x console – management |
|---|
- 1 x 1000Base-T – RJ-45
- 2 x SFP (mini-GBIC)
| Expansion Slots | 9 (total) / 7 (free) x expansion slot |
|---|---|
| Installed Modules Qty (Max) | 2 (installed) / 9 (max) |
Miscellaneous
| Compliant Standards | NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 60950, EN55024, CSA 22.2 No. 950, ACA TS001, AS/NZS 3260, FCC CFR47 Part 15, IEC 825-1, FCC CFR21 Part 1040 |
|---|
Dimensions & Weight
| Width | 17.5 in |
|---|---|
| Depth | 18.1 in |
| Height | 24.5 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
