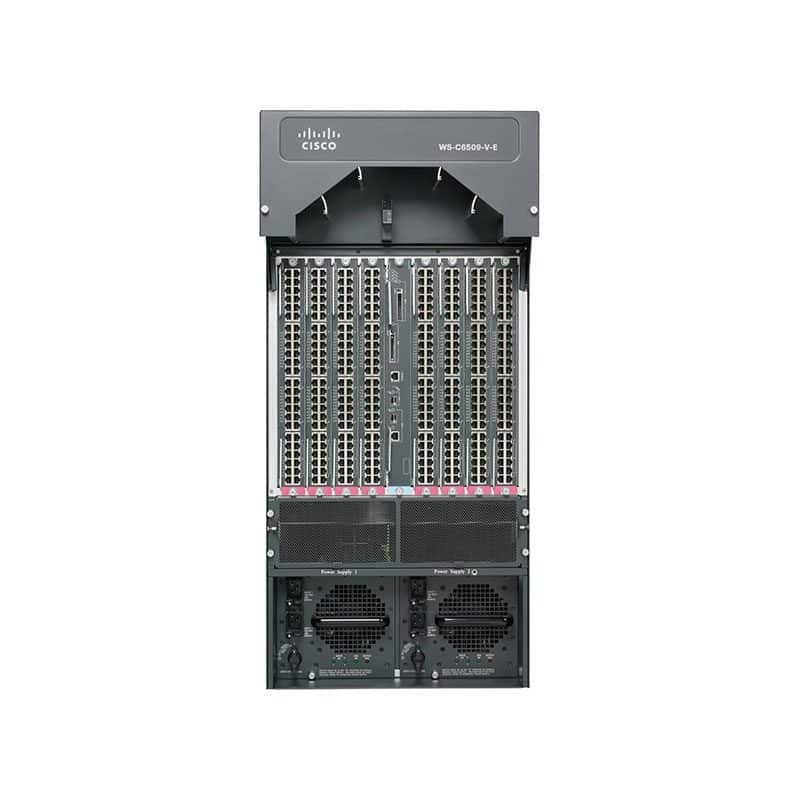

Refurbished WS-C6509-V-E Technical Specifications
Catalyst 6500 Enhanced 9-slot Chassis
| Product Line | Cisco Catalyst |
|---|---|
| Product Series | C6509 |
| Product Type | Switch Chassis |
| Number of Slots | 9 |
Supervisor Compatibility
| Cisco Catalyst | 6500 Series Supervisor Engine 32 |
|---|---|
| Cisco Catalyst | 6500 Series Supervisor Engine 720-3B |
| Cisco Catalyst | 6500 Series Supervisor Engine 720-3BXL |
| Cisco Catalyst | 6500 Series Supervisor Engine 720-10G-3C |
| Cisco Catalyst | 6500 Series Supervisor Engine 720-10G-3CXL |
| Cisco Catalyst | 6500 Series Supervisor Engine 2T |
| Power Supply | Compatibility |
| Indicates EoS Power Supply | |
| AC | 2500W*, 3000W, 4000W, 6000W, 8700W |
| DC | 2500W, 4000W, 6000W |
| Module | Compatibility |
| All modules based on the software release in the system | |
| Software | Compatibility (Minimum Software Version) |
- With Supervisor Engine 32
- 12.2(18)SXF10
- With Supervisor Engine 720
- 12.2(18)SXF10
- With Supervisor Engine 720-10 GE
- 12.2(33)SXH
- With Supervisor Engine 2T-10 GE
- 15.0(1)SY
- Reliability and Availability
- Calculated Mean Time Between Failure (MTBF)
- 330,888
- MIBS
- Check the corresponding supervisor engine data sheet
| Network | Management |
|---|---|
| Check the corresponding supervisor engine data sheet | |
| Physical Dimensions |
|
| Input | Voltage |
- 100 to 240 VAC
- -48 to -60 VDC
- Safety
- UL 60950 Second Edition
- CAN/CSA-C22.2 No. 60950 Second Edition
- EN 60950 Second Edition
- IEC 60950 Second Edition
- AS/NZS 60950
| EMC |
|
|---|---|
| Operating | Environment |
| Operating | Temperature |
| 32°F to 104°F (0 to 40°C) | |
| Storage | Temperature |
- -4 to 149°F (-20 to 65°C)
- Thermal Transition
- 0.5°C per minute (hot to cold)
- 0. 33°C per minute (cold to hot)
Relative Humidity
| Ambient (noncondensing) operating | 5% to 90% |
|---|---|
| Ambient (noncondensing) nonoperating and storage | 5% to 95% |
| Operating | Altitude |
| Certified for operation | 0 to 6500 ft (0 to 2000 m) |
| Designed and tested for operation | -200 to 10,000 ft (-60 to 3000 m) |
