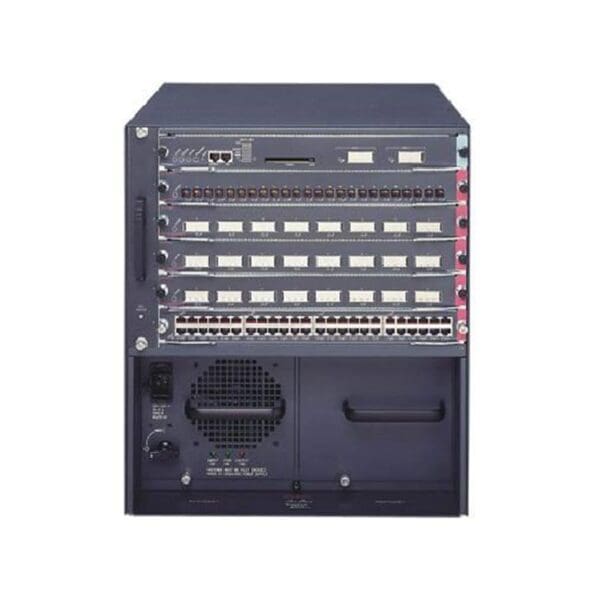

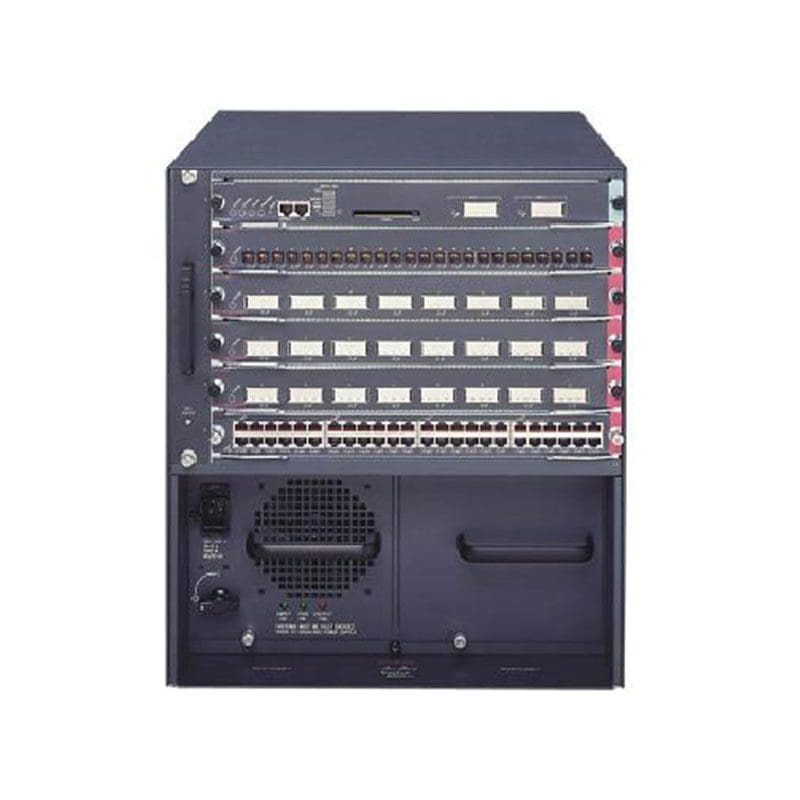

Refurbished WS-C6506E-S32-GE Technical Specifications
Cisco Catalyst switch 6506E, WS-SUP32-GE-3B, Fan Tray
| Manufacturer | Cisco |
|---|---|
| Manufacturer Part # | WS-C6506E-S32-GE |
| Product Line | Cisco Catalyst |
| Product Series | C6506E |
| Product Type | Switch Bundle |
| Device Type | Switch – Managed – with Supervisor Engine 32 |
| Enclosure Type | Desktop 12U |
| Interfaces | Gigabit Ethernet |
| Ports | 8 x SFP |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3 |
| Compliant Standards | IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Dimensions (WxDxH) | 44.5 cm x 46 cm x 48.8 cm |
General
| Device Type | Switch – Managed – with Supervisor Engine 32 |
|---|---|
| Enclosure Type | Desktop – 12U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x SFP |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3 |
| Features | NAT support, MPLS support, IPv6 support |
| Compliant Standards | IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 256 MB (installed) / 1 GB (max) |
| Flash Memory | 256 MB (installed) / 1 GB (max) – Flash |
| Status Indicators | Port status, power, link OK, system, active |
Expansion / Connectivity
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – management |
|---|
- 2 x USB
- 8 x SFP (mini-GBIC)
| Expansion Slots | 6 (total) / 5 (free) x Expansion Slot |
|---|---|
| Installed Modules Qty (Max) | 1 (installed) / 6 (max) |
Miscellaneous
| Compliant Standards | NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548 |
|---|
Dimensions & Weight
| Width | 44.5 cm |
|---|---|
| Depth | 46 cm |
| Height | 48.8 cm |
Environmental Parameters
| Min Operating Temperature | 0 °C |
|---|---|
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% |
