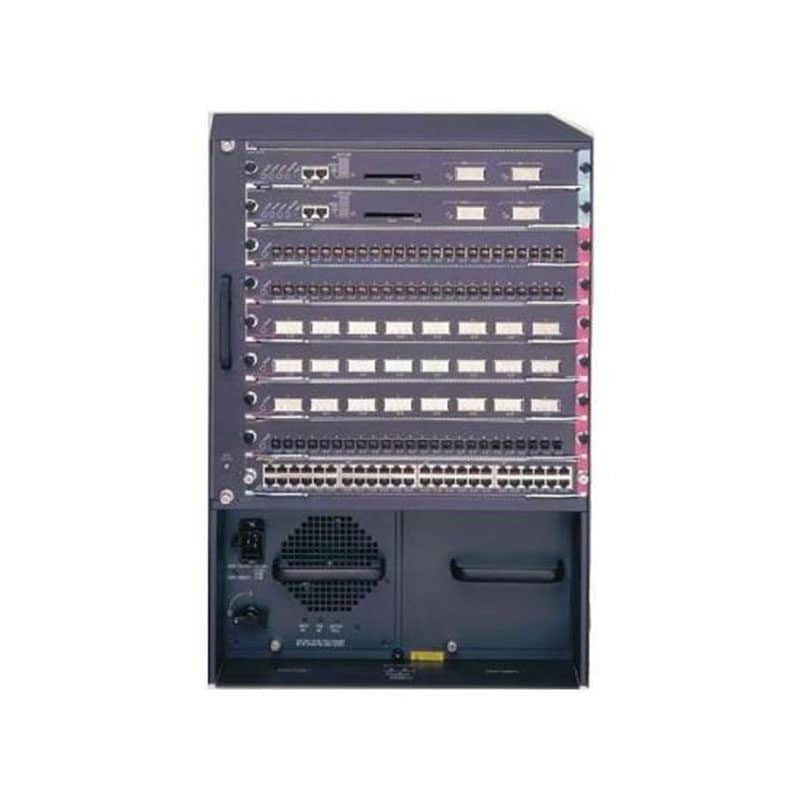

Refurbished WS-C6506E-IPSF-K9 Technical Specifications
Cisco 6500 Switch 6506E+4 x IDSM2+ Sup32 + 8 Fiber SFP and Pwr
| Manufacturer | Cisco |
|---|---|
| Product Line | Cisco Catalyst |
| Product Series | C6506E |
| Manufacturer Part # | WS-C6506E-IPSF-K9 |
| Product Description | Cisco Catalyst 6506-E IDSM-2 Bundle with 2-Gbps Performance – switch – 8 ports – managed – desktop |
| Switch | Bundle |
| Device Type | Switch – 8 ports – managed |
| Enclosure Type | Desktop 12U |
| Interfaces | Gigabit Ethernet |
| Ports | 8 x 1000Base-SX + 1 x 10/100/1000 |
| Max Transfer Distance | 1800 ft |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP |
| Features | NAT support, MPLS support, VLAN support, IPv6 support, Intrusion Prevention System (IPS), Access Control List (ACL) support |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 18.1 in x 19.2 in |
General
| Device Type | Switch – 8 ports – managed |
|---|---|
| Enclosure Type | Desktop – 12U |
| Interfaces | Gigabit Ethernet |
| Ports | 8 x 1000Base-SX + 1 x 10/100/1000 |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell v.2 (SSH2) |
| Features | NAT support, MPLS support, VLAN support, IPv6 support, Intrusion Prevention System (IPS), Access Control List (ACL) support |
| Status Indicators | Port status, power, link OK, system, active |
Expansion / Connectivity
| Interfaces | 2 x USB |
|---|
- 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
- 8 x 1000Base-SX – LC multi-mode x 2
| Expansion Slots | 6 (total) / 1 (free) x expansion slot |
|---|---|
| Installed Modules Qty (Max) | 5 (installed) / 6 (max) |
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Yes |
Miscellaneous
| Compliant Standards | NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548 |
|---|
Dimensions & Weight
| Width | 17.5 in |
|---|---|
| Depth | 18.1 in |
| Height | 19.2 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
