WS-C4506E+96 Technical Specifications

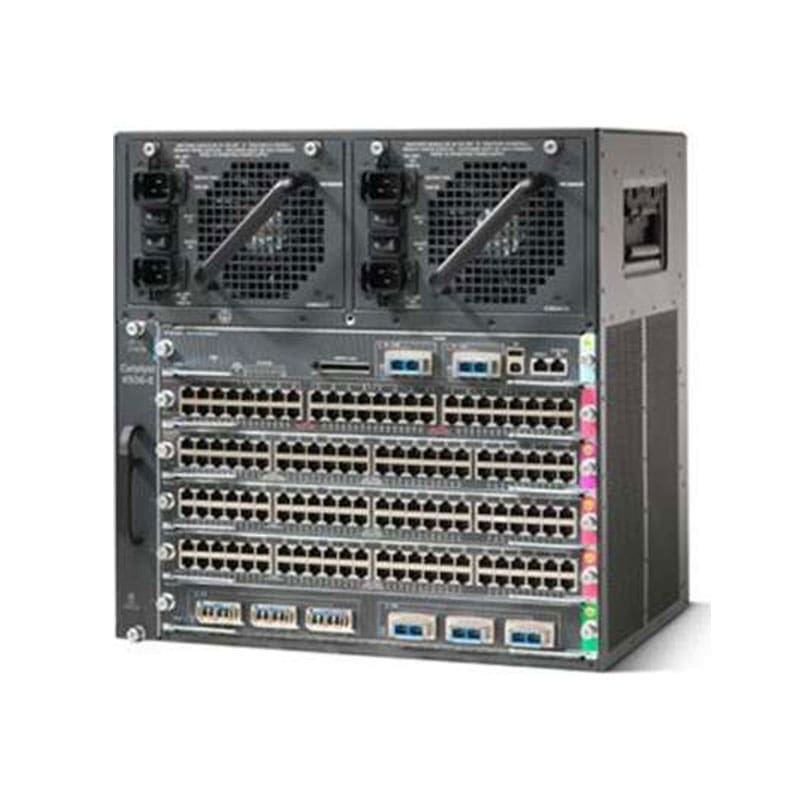

Cisco Catalyst 4506-E Switch Rack-mountable With Cisco Catalyst 4500E
| Enclosure Type | Rack-mountable 10U |
|---|---|
| Manufacture Part Number | WS-C4506E+96 |
| Subtype | 10 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
Features
| Power over Ethernet | (PoE), universal power over Ethernet (UPOE) |
|---|
Expansion / Connectivity
| Expansion Slots | 6 (total) / 6 (free) x expansion slot |
|---|---|
| Installed Modules Qty (Max) | 0 (installed) / 6 (max) |
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Consumption Operational | 1300 Watt |
Miscellaneous
| Cables Included | 1 x power cable |
|---|---|
| Software Included | Cisco IOS LAN Base |
Dimensions & Weight
| Width | 17.3 in |
|---|---|
| Depth | 12.5 in |
| Height | 17.4 in |
| Weight | 40.5 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
Min Storage Temperature-40 °F
| Max Storage Temperature | 67 °: |
|---|
