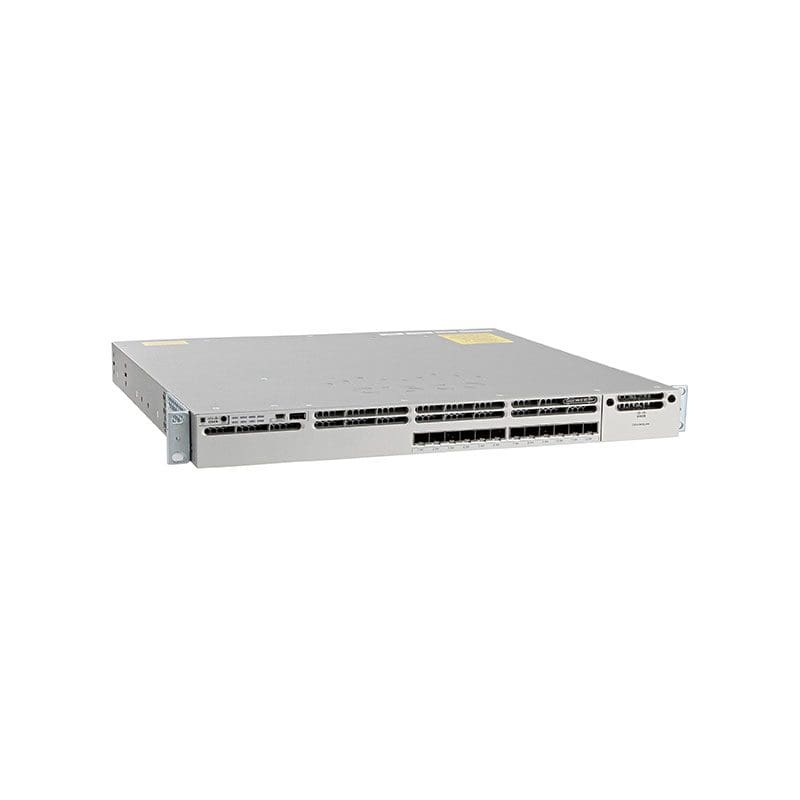

Refurbished WS-C3850-12XS-E Technician Specifications
Cisco Catalyst 3850 12 Port 10G Fiber Switch IP Services
General Information
| Brand Name | Cisco |
|---|---|
| Product Line | Cisco Catalyst |
| Product Series | C3850 |
| Product Model | WS-C3850-12XS |
| Product Name | Catalyst WS-C3850-12XS Layer 3 Switch |
| Product Type | Layer 3 Switch |
Interfaces/Ports
| Token Ring Port | No |
|---|---|
| LRE Port | No |
| Bypass | No |
| Management Port | Yes |
| USB | Yes |
| Number of PoE+ (RJ-45) Ports | 24 |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
I/O Expansions
| Number of Total Expansion Slots | 12 |
|---|---|
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
Network & Communication
| Layer Supported | 3 |
|---|
Management & Protocols
| Manageable | Yes |
|---|
Management
- MIB
- RMON I and II
- SNMPv1, v2c, v3
| QOS |
|
|---|
Memory
| Standard Memory | 4 GB |
|---|---|
| Memory Technology | DRAM |
| Flash Memory | 2 GB |
Reliability
| Mtbf | 269450 Hour |
|---|
Power Description
| PoE (RJ-45) Port | Yes |
|---|---|
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Height | 1.8″ |
| Width | 17.5″ |
| Depth | 17.7″ |
| Weight (Approximate) | 12.79 lb |
Miscellaneous
Package Contents
- Catalyst WS-C3850-12XS Layer 3 Switch
- 350WAC power supply
Certifications & Standards
IEEE Standards
- 802.1w
- 802.11
- 802.1x
- 802.1x-Rev
- 802.3ad
- 802.3af
- 802.3at
- 802.3x
- 802.1D
- 802.1p
- 802.1Q
- 802.3
- 802.3u
- 802.3ab
- 802.3z
- 802.1s
Safety Certifications
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- GOST
- NOM
Electromagnetic Emissions Certifications
- FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN 55022 Class A
- CISPR 22 Class A
- AS/NZS 3548 Class A
- BSMI Class A (AC input models only)
- VCCI Class A
- EN 55024
- EN300386
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN 61000-6-1
