WDS512G1X0C Technical Specifications

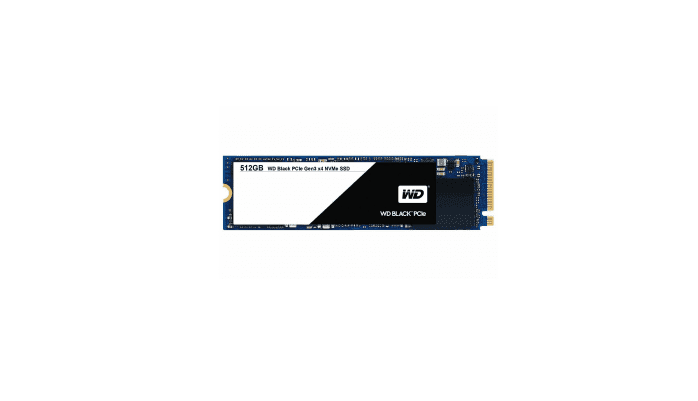

Western Digital Black 512GB PCI Express 3.0
General Information
| Manufacturer | Western Digital |
|---|---|
| Manufacturer Model | WDS512G1X0C |
| Product Type | Solid State Drive (SSD) |
| Product Series | Wd Black™ Pcie Ssd |
| Product Name | Wd Black™ Pcie Ssd Wds512g1x0c Solid State Drive |
Key Features
| Storage Capacity | 512 GB |
|---|---|
| Form Factor | M.2 2280 |
| Mttf | Up To 1.75M HOURS |
| Interface | Pcie Gen3 8 GB S |
| Certifications | FCC, UL, TUV, KC, BSMI, VCCI |
| Shock | 1,500 G @ 0.5 MSEC HALF SINE |
Performance [4Kb Qd32]
| Pcmark | 180 K |
|---|---|
| Sequential Read | UP TO 2050 MBPS |
| Sequential Write | UP TO 800 MBPS |
| Random Read | UP TO 170K IOPS |
| Random Write | UP TO 134K IOPS |
| Endurance | 160 TBW |
Physical Size
| Dimensions | 22 ± 0.15 MM X 80 ± 0.15 MM X 2.38 MM |
|---|---|
| Weight | 7.2 ± 0.5 G |
