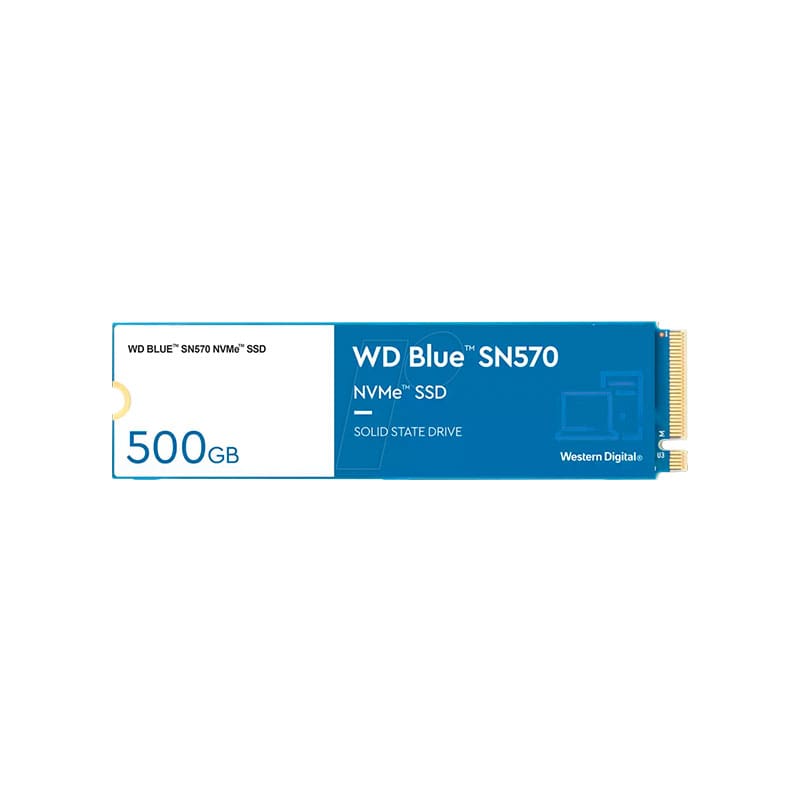

WDS500G3B0C Western Digital Blue SN570 Series 500GB TLC PCI Express SSD

WDS500G3B0C Overview

The Western Digital Blue SN570 500GB NVMe SSD is a reliable and high-performance storage solution designed for everyday computing, productivity, and light gaming needs. Built in an M.2 2280 form factor with a PCI Express 3.0 x4 interface, it delivers fast data transfer speeds and smooth system responsiveness. With sequential read speeds of up to 3500 MB/s and write speeds of up to 2300 MB/s, it significantly reduces boot times, application loading, and file transfer delays compared to traditional SATA SSDs. The drive uses 3D TLC NAND technology and a DRAM-less design optimized by Western Digital’s in-house controller to balance speed, efficiency, and reliability.

$290.00

Shipping calculated at checkout.
or
SKU: WDS500G3B0C Categories: Brand:

WDS500G3B0C Technical Specifications

Western Digital Blue SN570 Series 500GB TLC PCI Express SSD

Manufacturer Western Digital
Manufacturer Part # WDS500G3B0C
.Brand Western Digital
.Series WD Blue SN570
.Capacity 500GB
.Form Factor M.2 2280
.Interface PCI Express 3.0 x4
.Protocol NVMe 1.4
.NAND Type 3D TLC
.Controller WD in-house controller
.Dram DRAM-less design
.Seq Read Speed up to 3500 MB/s
.Seq Write Speed up to 2300 MB/s
.Random Read up to 360,000 IOPS
.Random Write up to 390,000 IOPS
.Endurance 300 TBW
.Mttf 1.5 Million Hours
.Power Consumption Active approx 4.0 W
.Power Consumption Idle very low power state supported
.Operating Temperature 0°C to 70°C
.Storage Temperature -40°C to 85°C
