WDS200T5B0E-00CPE0 Technical Specifications

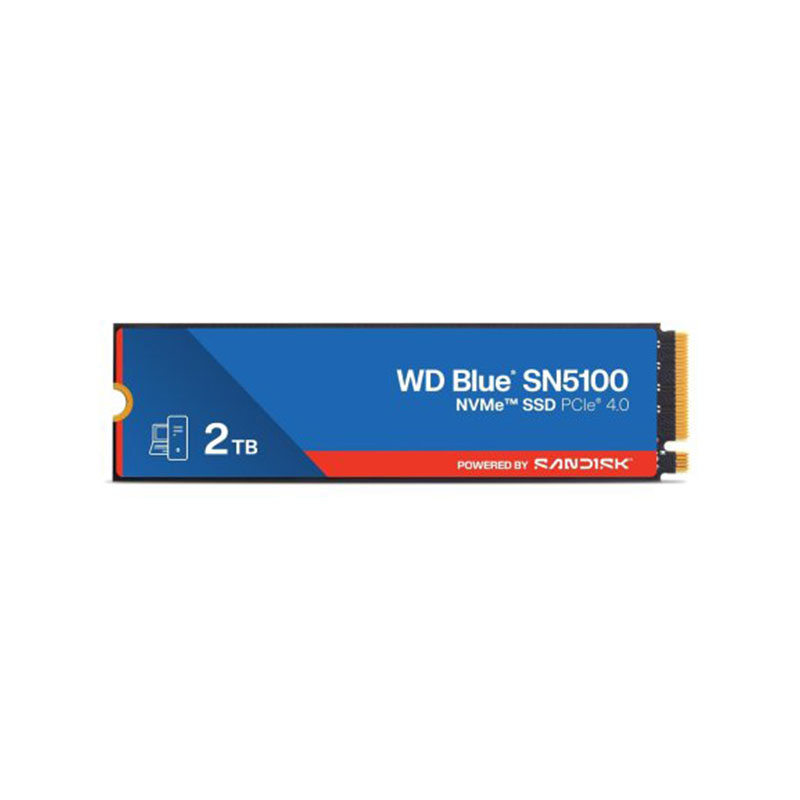

WD Blue SN5100 2TB PCIe NVMe 4.0 x4 M.2 2280 Solid State Drive
| Manufacture Part Number | WDS200T5B0E-00CPE0 |
|---|---|
| Manufacturer | Western Digital |
| Series | WD Blue SN5100 |
Interface & Form Factor
| Interface | PCIe Gen4 x4 |
|---|---|
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 (single-sided) |
| Connector | M-Key |
| Backward Compatible with PCIe Gen3 systems | |
Storage & NAND
| Storage Capacity | 2 TB |
|---|---|
| NAND Type | 3D QLC NAND Flash (QLC CBA architecture) |
Performance
| Sequential Read Speed | Up to 7,100 MB/s |
|---|---|
| Sequential Write Speed | Up to 6,700 MB/s |
| Random Read | Up to 1,000,000 IOPS |
| Random Write | Up to 1,300,000 IOPS |
Endurance & Reliability
| Endurance (TBW) | 900 TB Written |
|---|---|
| MTBF (Mean Time Between Failures) | ~1.75 Million hours |
- nCache 4.0 dynamic SLC caching technology
- TRIM, S.M.A.R.T monitoring support
Physical
| Dimensions | ~80 mm × 22 mm × ~2.38 mm |
|---|---|
| Weight | ~5.7 g |
| Power Consumption (Active) | ~4.1 W |
