WDS100T1X0E Technical Specifications

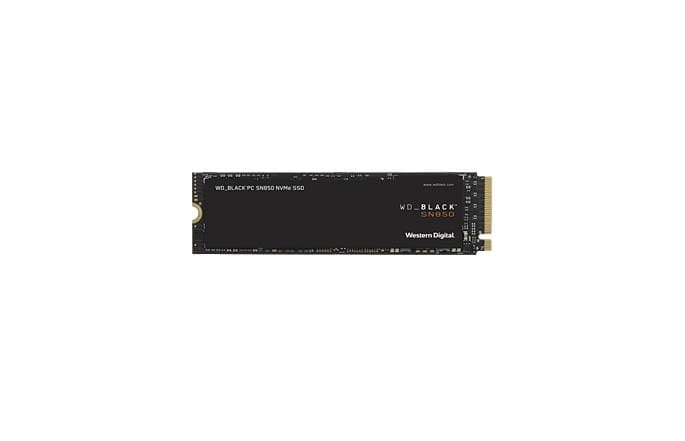

WD Black SN850 NVMe SSD solid state drive 1TB PCI Express
| Manufacturer | Western Digital |
|---|---|
| Brand | WD |
| Product Line | WD Black SN850 NVMe SSD |
| Model | WDS100T1X0E |
| Packaged Quantity | :1 |
Storage
| Type | Solid state drive |
|---|
Hard Drive
| Hard Drive Type | Internal hard drive |
|---|---|
| Form Factor | M.2 2280 |
| Form Factor (metric) | M.2 2280 |
| Form Factor (Short) | M.2 |
| Form Factor (Short) (metric) | M.2 |
| Storage Interface | PCI Express 4.0 x4 (NVMe) |
| Interface | PCI Express 4.0 x4 (NVMe) |
| Capacity | :1 TB |
| Internal Data Rate | :7000 MBps |
| Internal Data Rate (Write) | :5300 MBps |
| Maximum 4KB Random Read | :1000000 IOPS |
| SSD Endurance | :600 TB |
| Features | :3D NAND Technology |
Interface Provided
| Interfaces | :1 x PCI Express 4.0 x4 (NVMe) – M.2 Card |
|---|
Bay Required
| Compatible Bay | M.2 2280 |
|---|
Software
| Type | WD SSD Dashboard |
|---|
System Requirements
| OS Required | Windows 8.1 / 10 |
|---|
Dimensions & Weight
| Width | :0.9 inch |
|---|---|
| Depth | :3.1 inch |
| Height | :0.1 inch |
| Weight | :0.26 ounce |
