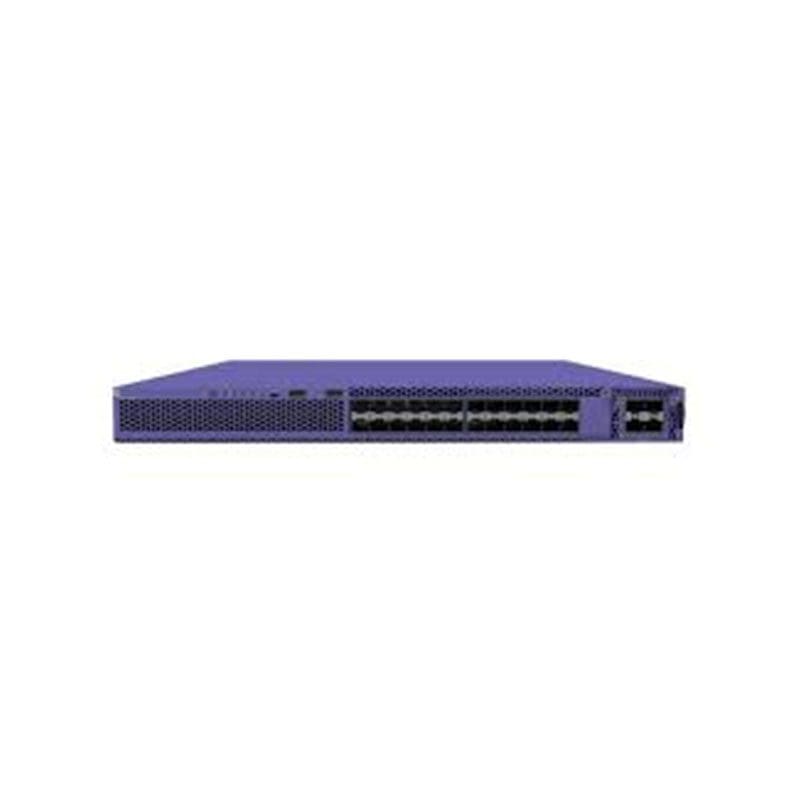

VSP4900-24S Extreme Networks 1U RM L3 Managed Switch

VSP4900-24S Overview

Extreme Networks 1U RM L3 Managed Switch

$7,199.00

Shipping calculated at checkout.
or
SKU: VSP4900-24S Categories: Brand:

VSP4900-24S Technical Specifications

Extreme Networks 1U RM L3 Managed Switch

Actual Weight 18.00 lb(s)
Connectivity # Ports: 24
Contents Switch, power supply, rack mounting kit, (3) fan modules, documentation
General Chassis Form Factor: 1U Rackmount
Color Purple
General Information Aggregate switching bandwidth: 148 Gbps
Frame rate 110,1 Mpps
VLANs supported 4059
MSTP instances 12
Links per MLT/LACP group 8
ARP entries 32000
IPv4 routes 15488
RIP interfaces 200
OSPF interfaces 500
BGP peers 256
VRF instances 256
IPv6 neighbor table entries 8000
IPv6 routes 7744
RIPng interfaces 48
OSPFv3 interfaces 500
BGPv6 peers 256
IGMP interfaces 4059
PIM active interfaces 128
MLD interfaces 4059
IP multicast streams 6000
MAC addresses 40000
L2 virtual service networks 4059
L3 virtual service networks 256
IP shortcut routes (IPv4) 15488
IP shortcut routes (IPv6) 7488
L2 multicast virtual service networks 2000
L3 multicast virtual service networks 256
MAC Address Table Size 80K entries

Memory

RAM (installed) 2GB
Memory Notes 2GB RAM
8GB Flash
Physical Dimensions
  • 1.7″h x 17.3″w x 19.2″d
  • Ports/Connectors

I/O

  • (24) 100/1000Base-X SFP
  • (2) USB Type-A
  • (1) RJ-45 serial console
  • (1) 1000Base-T RJ-45 management
  • (1) micro-USB Type-B management
  • (2) Power in

Power

# Power Supplies Installed 1
# Power Supplies Supported 2
Power Provided 350watt(s)
Power Notes

(1) 350W hot-plug power supply; supports 2 maximum.

1+1 power redundancy with optional second power supply
Voltage required 120 to 230V AC, 50 to 60Hz

Protocols

Networking Protocol Gigabit Ethernet
Networking Protocol Ethernet
Routing Protocol BGP
Routing Protocol BGP+
Routing Protocol IGMP
Routing Protocol IGMPv2
Routing Protocol IGMPv3
Routing Protocol OSPFv2
Routing Protocol OSPFv3
Routing Protocol PIM-SM
Routing Protocol PIM-SSM
Routing Protocol RIP-1
Routing Protocol RIP-2
Routing Protocol RIPng
Returns Policy

Due to manufacturer restrictions, all sales on this item are final.

Shipping Weight
  • 1 lbs

Storage

Hard Drive Capacity 8GB
Hard Drive Type Flash

System Requirements

OS Required VSP Operating System Software (VOSS)
