UF-WiFi6-US Technical Specification

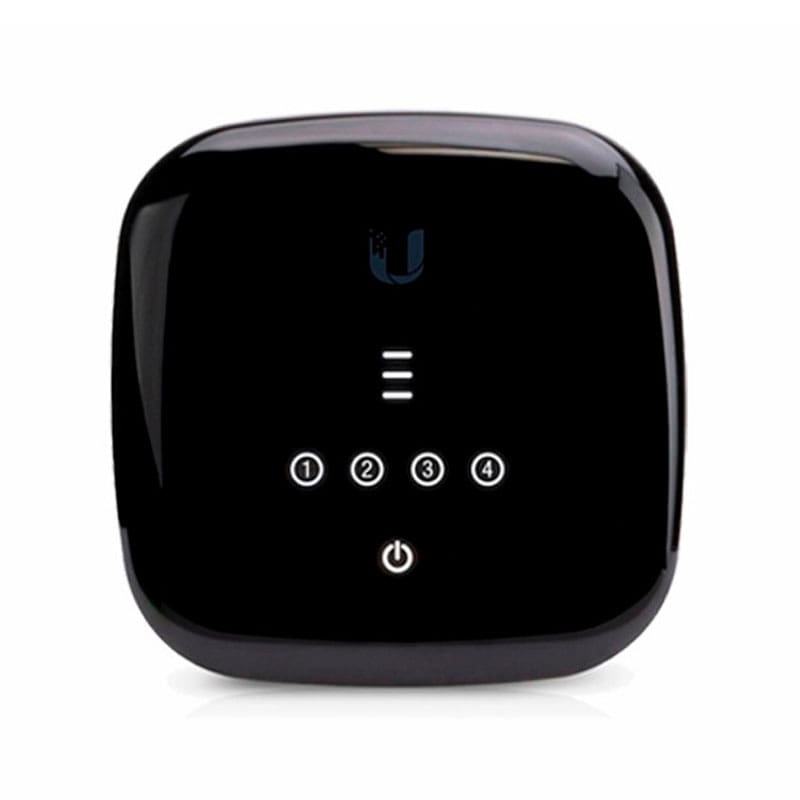

Ubiquiti Networks UFiber Wi-Fi 6 GPON CPE
| Manufacturer | Ubiquiti |
|---|---|
| Brand | Ubiquiti |
| Dimensions | 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25″) |
| Weight | 415 g (0.99 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Processor | Dual-core MIPS 1004 Kc at 900 MHz |
| Memory | 256 MB RAM |
| Total non-blocking line rate | 2.488 Gbps downstream 1.244 Gbps upstream |
| Networking interfaces | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels |
| PoE interface | (1) PoE in, 24V passive PoE |
| Management interface | Ethernet in-band PON |
| Button | Factory-reset |
| Max. power consumption | 11W |
| Power method | USB-C 5VDC, 3A 24V passive PoE, 0.5A |
| Power supply | 5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 😎 |
| Supported voltage range | 10 to 30VDC passive PoE 5VDC adapter |
| Normal TX range of optical module | 0.5 to 5 dBm |
| Normal RX range of optical module | -8 to -28 dBm |
