UDM-US Technical Specifications

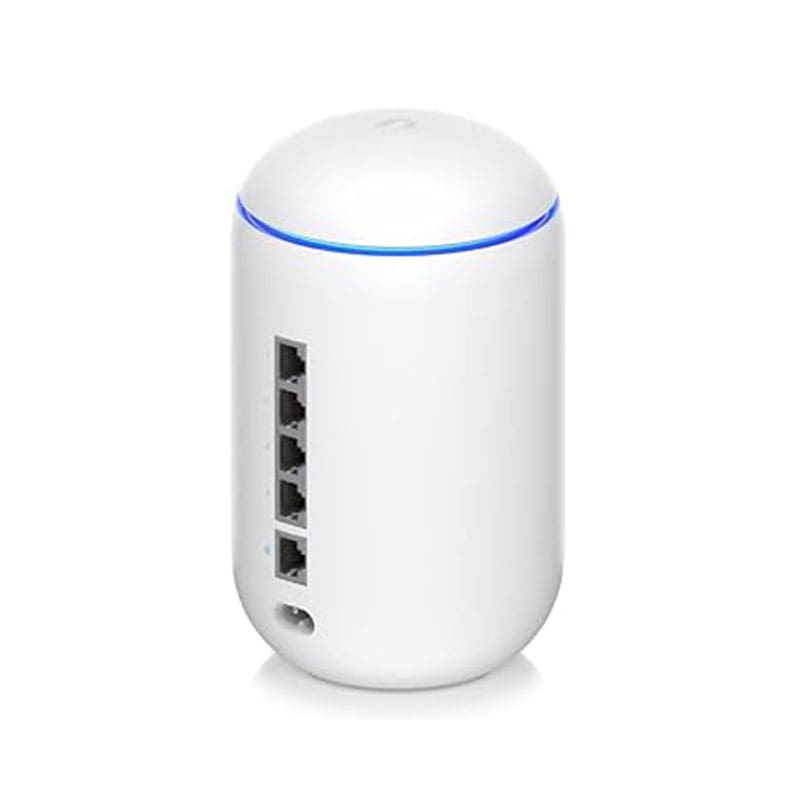

Ubiquiti UniFi Dream Machine wireless router Wi-Fi 5 desktop
| Brand |
Ubiquiti |
| Product Line |
Ubiquiti UniFi |
| Model |
Dream Machine |
| Manufacturer |
Ubiquiti |
Processor
| Clock Speed |
1.7 GHZ |
| Processor Brand |
ARM |
| Processor |
Type |
Cortex-A57
Memory
| Flash Memory Installed |
16 GB |
| Memory Technology |
DDR SDRAM |
| RAM Installed |
2 GB |
Network & Communication
| Broadband Transmission Technology |
2.4 GHz / 5 GHz |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q
- Wired, Wireless
- Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
4×4 MU-MIMO technology, Beamforming technology, Deep Packet Inspection (DPI), Firewall protection, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), PowerSave, Quality of Service (QoS), Reset button, VLAN support, VPN Server
| Form Factor |
(Hubs & Switches) |
- Desktop
- Integrated Switch
- 4-port switch
Key Features
Firewall, VPN support
| Product |
Type |
| Wireless |
router |
WAN Ports Quantity 1
| Wireless |
LAN |
| 802.11a/b/g/n/ac Wave 2 |
Connectivity
Interface Provided
| LAN |
4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
Power
| Power Consumption |
Operational |
| 26 watt |
Technical Information
| Antenna Form Factor |
Internal |
| Antennas |
1 |
| Encryption |
- AES, TKIP, WEP, WPA2-Enterprise, WPA-Enterprise, WPA-PSK
|
| Max |
Operating Temperature |
| 113 degree Fahrenheit |
| Min Operating Temperature |
|
| Operating |
Humidity |
| 5 – 95% (non-condensing) |
Product Information
| Authentication Method |
- Basic Service Set Identifier (BSSID)
|
Capacity
Device Type
| Internal |
power supply |
| Packaged Quantity |
1 |
| Service Activation |
No |
Bridge & Router
| Intrusion detection throughput |
1 Gbps, Intrusion prevention throughput: 1 Gbps |
Dimensions & Weight
| Height |
7.2 inch |
| Weight |
2.31 lbs |
| Width |
4.3 inch |
| Depth |
4.3 inch |
