UCS-SD16TK3X-EP Technical Specifications

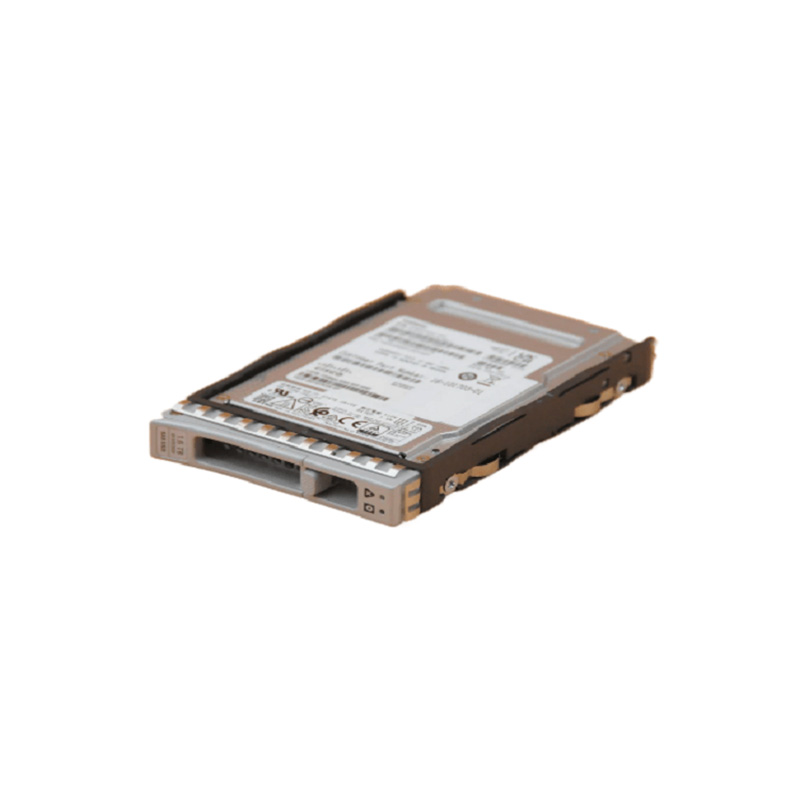

Cisco 1.6TB SAS 12Gbps TLC U.2 NVME SSD
| Manufacturer | Cisco |
|---|---|
| Manufacture Part Number | UCS-SD16TK3X-EP |
| Capacity | 1.6TB |
| Interface | SAS 12Gbps / U.2 NVMe (PCIe Gen3 x4) |
| Form Factor | 2.5-inch U.2 (Small Form Factor) |
| NAND Type | TLC (Triple-Level Cell) 3D NAND Flash |
| Performance Type | Mixed Use / High Performance |
| Data Transfer Rate | Up to 3200 MB/s (read), 1500 MB/s (write) |
| Random IOPS | Up to 700K Read / 120K Write |
| Endurance | 3 Drive Writes Per Day (DWPD) |
| Sector Size | 512e (512-byte emulation) |
