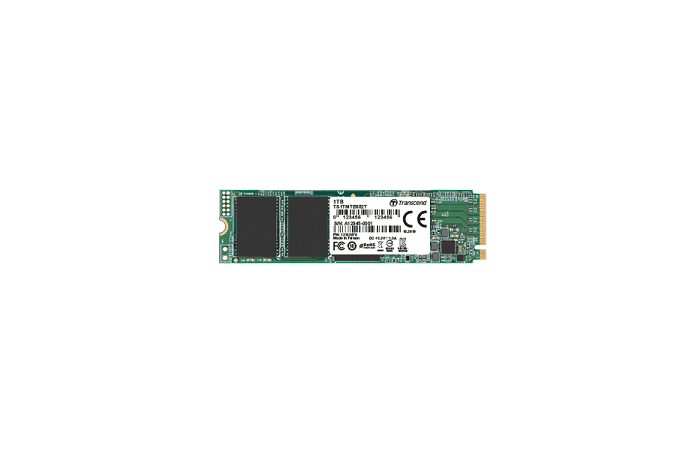

TS512GMTE652T Technical Specifications
Transcend solid state drive 512GB PCI Express 3.0 x4 (NVMe)
| Manufacturer | TRANSCEND |
|---|---|
| Brand | Transcend |
| Product Line | Transcend |
| Model | MTE652T |
| Packaged Quantity | :1 |
Storage
| Type | Solid state drive |
|---|
Hard Drive
| Hard Drive Type | Internal hard drive |
|---|---|
| Form Factor | M.2 2280 |
| Form Factor (metric) | M.2 2280 |
| Form Factor (Short) | M.2 |
| Form Factor (Short) (metric) | M.2 |
| Storage Interface | PCI Express 3.0 x4 (NVMe) |
| Interface | PCI Express 3.0 x4 (NVMe) |
| Capacity | :512 GB |
| NAND Flash Memory Type | :3D triple-level cell (TLC) |
| Internal Data Rate | :1700 MBps |
| Internal Data Rate (Write) | :1600 MBps |
| Maximum 4KB Random Read | :165000 IOPS |
| Maximum 4KB Random Write | :125000 IOPS |
| Drive Writes Per Day (DWPD) | :1 |
| Features | DRAM cache, ECC Recovery LDPC, SLC cache, Thermal throttling |
Interface Provided
| Interfaces | :1 x PCI Express 3.0 x4 (NVMe) – M.2 Card |
|---|
Bay Required
| Compatible Bay | M.2 2280 |
|---|
Power Consumption
| Power Consumption | :0.6 Watt (standby), 3.5 Watt (active) |
|---|
Miscellaneous
| Mtbf | :1,500,000 Hours |
|---|---|
| Compliant Standards | BSMI, FCC, RoHS2 |
Dimensions & Weight
| Width | :0.9 inch |
|---|---|
| Depth | :3.1 inch |
| Height | :0.1 inch |
| Weight | :0.32 ounce |
